MOISTURE SEPARATOR

Description
Additional Information

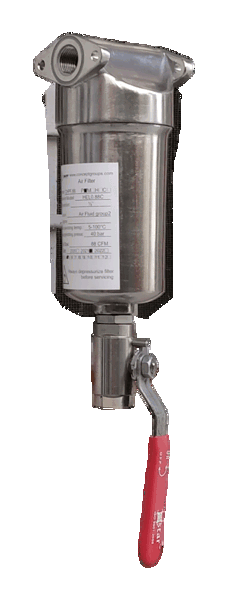

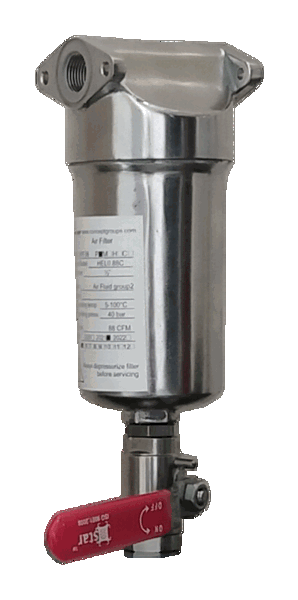

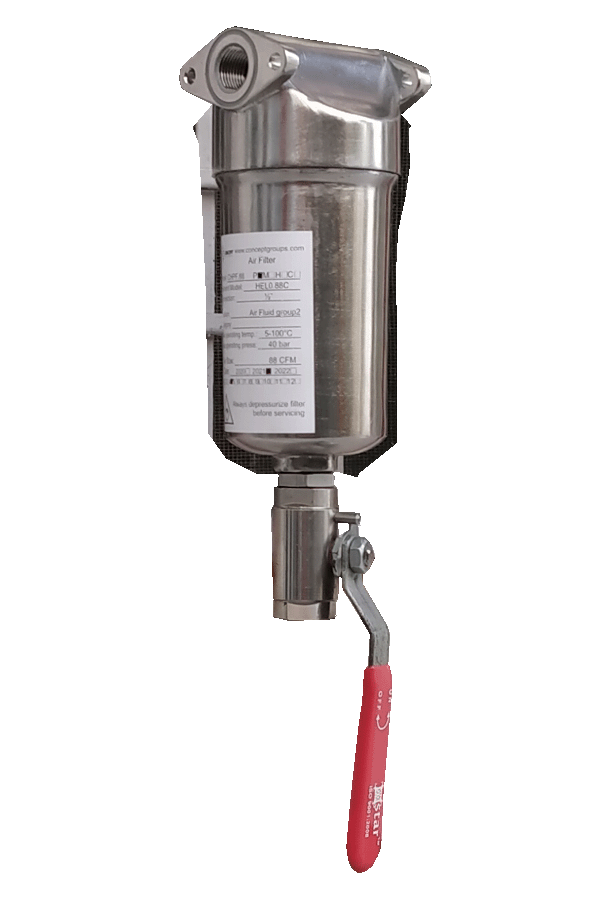

Housing Features:

Robust, spheroidal S.S. 304 (Grade 1.4301) provides higher mechanical strength, improved ductility, and increased shock resistance, ensuring durability and reliability.
Head-to-bowl bore seal ensures greater seal integrity.
Engraved flow direction arrow on the filter’s head indicates the proper flow direction, minimizing installation errors.
Laser-engraved part numbers ensure long-term visibility of identifying information.
Manual drain valve (S.S. 304) with a positive O-ring seal is included for convenience.
Bowls are designed to be easily tightened or loosened using a standard socket wrench.

Filter Specifications:

S. No.	Model	Connection BSP (F)	Dimension (mm)				Element Part No.
			A	B	C	D
1	CHMS-056	½"	195	90	18	340	ELCH056060X069
2	CHMS-088	½"	195	90	18	340	ELCH088060X076
3	CHMS-127	¾"	267	90	18	340	ELCH127060X112
4	CHMS-212	1"	300	125	31	445	ELCH212085X122
5	CHMS-254	1-½"	300	125	31	445	ELCH254085X130
6	CHMS-300	1-½"	380	125	31	525	ELCH300085X160
7	CHMS-441	1-½"	380	125	31	525	ELCH441085X200

Discover robust housing features like S.S. 304 construction, engraved flow indicators, and manual drain valves for durability and ease of use. Explore filter models CHMS-056 to CHMS-441, each designed with precise dimensions and reliability for industrial applications.
