ZERO AIR LOSS DRAIN VALVEZERO AIR LOSS DRAIN VALVE
Specifications:
Timer
-
Supply Voltage: 240 VAC (180-260 VAC) 50 Hz (Other options on request)
-
Operating Temperature: 70°C (Maximum)
-
Enclosure Housing: High Impact Resistant ABS
-
Connection: DIN 43650 A with Power Indication
-
Indications:
- LED (Red): Power On
- LED (Yellow): 'On' after every 15 Sec. Indicates timer healthiness
- LED (Green): 'On' during drain cycle
-
Test Switch: For Manual Test Drain
Valve
| Type | : 2 Way Direct Acting |
| In/Out Ports | : ½” BSP (F) |
| Working Pressure | : 12 Kg./cm² |
| Valve Body | : Bar Stock Aluminium |
| Orifice | : 5 mm |
| Material | : Clear Poly Carbonate |

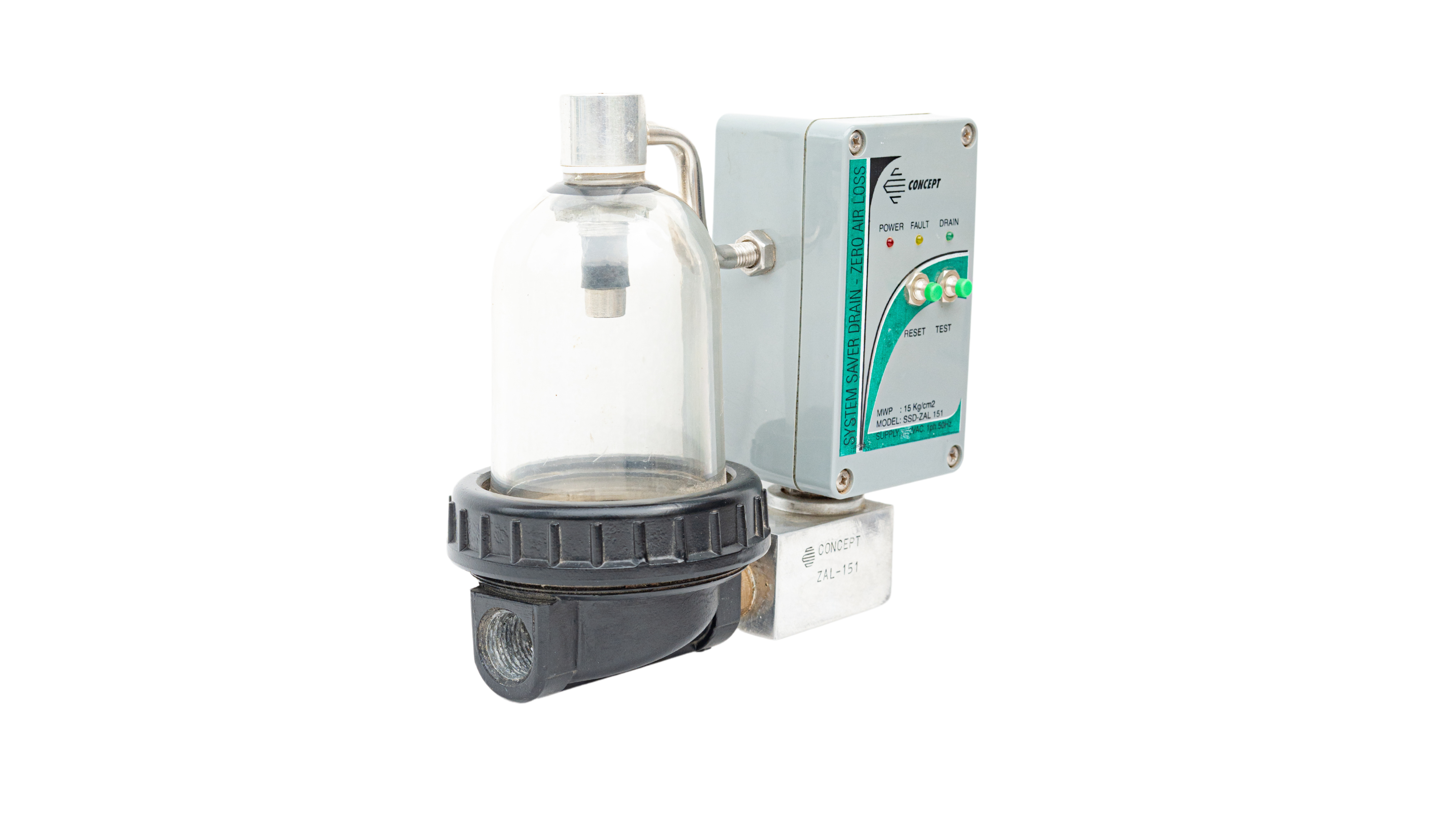

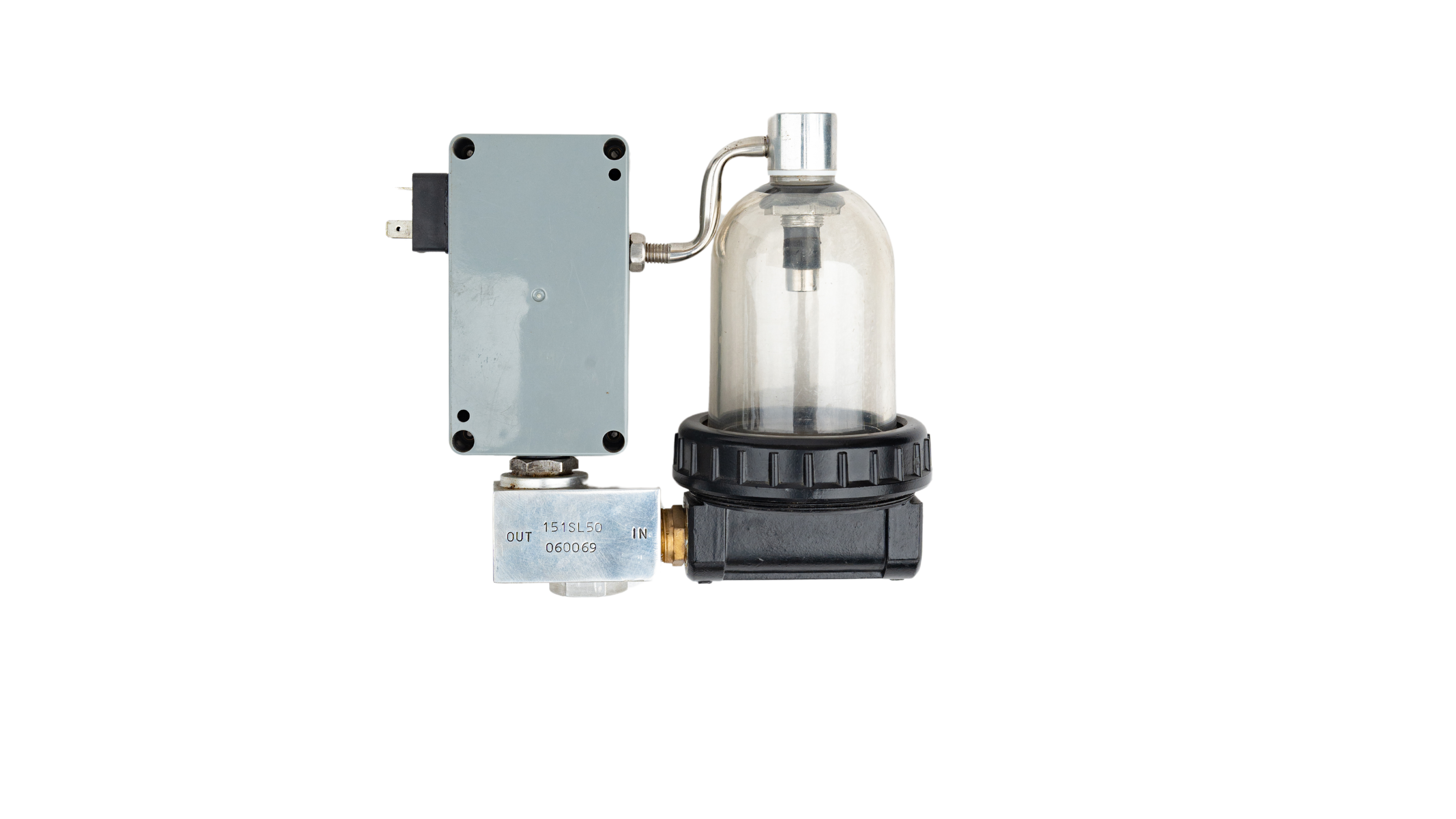

Motorised Auto Drain Valve - SSD-ZAL-121
Model | Orifice | MWP | Connection Size | Features |
|---|
SSD-ZAL-121 | 5 mm | 12 Kg/cm² | ½” BSP (F) | Compact, Test Switch, Fault Indication, Inbuilt Strainer |
|---|
