ZERO AIR LOSS DRAIN VALVE

ZERO AIR LOSS DRAIN VALVE

SKU: CFOD-161

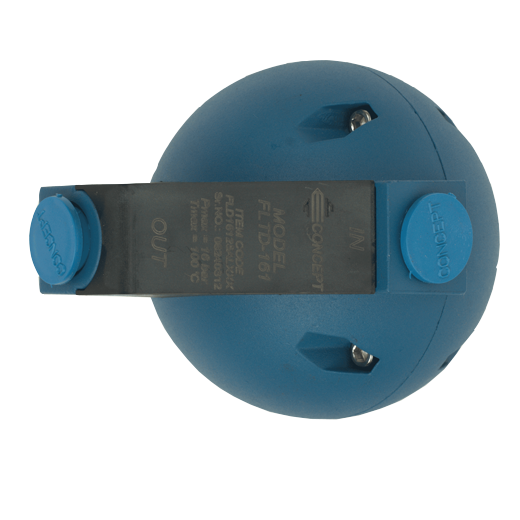

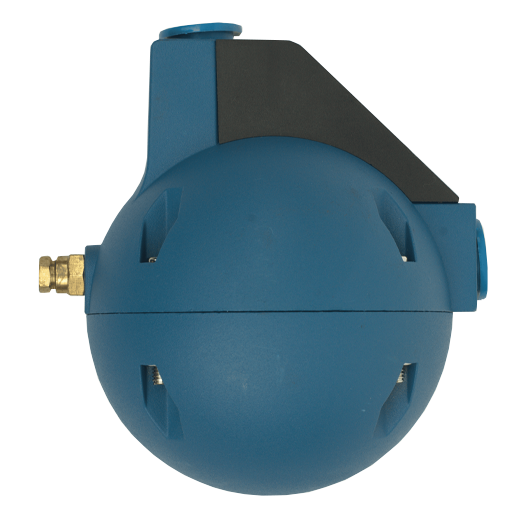

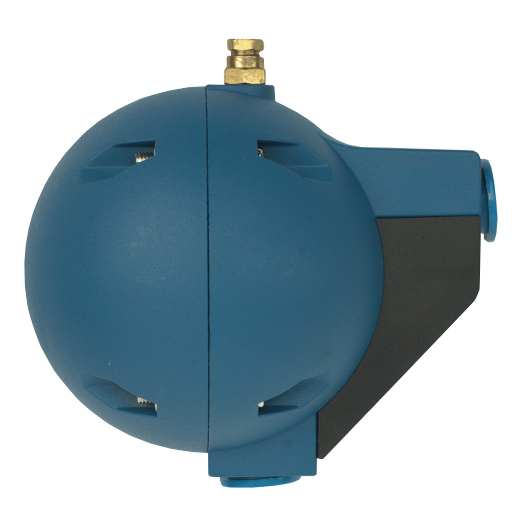

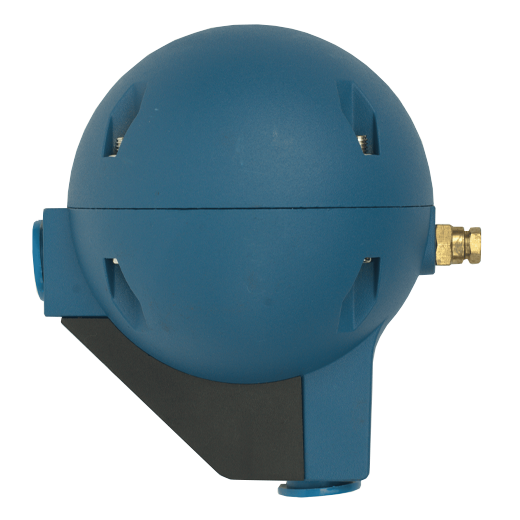

Auto Drain Valve - CFOD-161

New Improved Design

Specifications

  • Connection Ports: ½” BSP (F)
  • Seal Material: NBR
  • Media: Moisture / Water
  • Working Pressure: 2 - 16 Kg/cm²
  • Working Temperature: -10°C to 80°C
  • Working Type: Leverage and Buoyancy Type
  • Max. Pressure: 20 bar
  • Valve Body Material: Aluminium Anodised (Inside) Finish, Powder Coated

Features

  • Automatic discharge without human management.
  • Discharges moisture automatically when water reaches a certain level, using the leverage and buoyancy principle.
  • Compact ball-type design saves installation space.
  • Direct installation on the inlet pipe; no bolts required.

The Auto Drain Valve CFOD-161 is a reliable and efficient solution for automatically removing condensate in compressed air systems. Designed with precision, it features a robust anodised aluminum body with a powder-coated finish, ensuring durability and long-term performance. This valve supports a wide working pressure range of 2 to 16 Kg/cm² and operates effectively in temperatures between -10°C to 80°C.

Key features include a leverage and buoyancy mechanism for automatic discharge, eliminating the need for human intervention. Its compact ball-type design saves installation space, and the valve is directly installable on the inlet pipe without additional bolts. Ideal for industrial and commercial applications, the CFOD-161 ensures optimal system efficiency while minimizing maintenance needs.
