REFRIGERATED AIR DRYER

REFRIGERATED AIR DRYER

SKU: CENX-XX

REFRIGERATION AIR DRYER

CENX-XX

FeatureDetails
Flow range20 to 1500 CFM
Pressure range<1.6 Mpa (16 barg)
Maximum intake air temperature45°C
Maximum ambient temperature48°C
Cooling methodAir-cooled
Power supply220V/1Ph/50Hz (20 to 400 CFM)
415V/3Ph/50Hz (500 CFM & Above)
RefrigerantR407c/R134a/R22a
Rated working conditionsWorking pressure 7 bar, intake air temperature 45°C, ambient temperature 48°C, dew point +3°C (+1-4°C)





Refrigerated Dryers

Refrigerated dryers ensure dry compressed air, prolonging the life of equipment and ensuring excellent production quality. Efficient removal of water to avoid corrosion in compressed air networks and air tools. All in all, can reduce maintenance costs and improve overall levels.

Features:

  • The precooler, evaporator, and separator adopt an integrated design.
  • The special thickened alloy aluminium heat exchanger assembly has a much higher corrosion resistance than similar designs.
  • The surface of the condenser adopts nano anti-corrosion coating to prolong the service life.

Energy Saving & Environmental Protection:

  • The heat exchanger 3-IN-1 type (Fin & Tube or PHE Aluminium).
  • The temperature difference between the inlet and outlet of the precooler is 5-8°C, which is much better than that of similar products, ensuring extremely low relative humidity at the outlet and preventing condensation at the nozzle.
  • Since the pre-cooler recovers more than 90% of the cooling capacity, the load on the evaporator is effectively reduced.

Condenser

  • Air cooled (20-1500 cfm) / water cooled above 1500 cfm
  • or as per customer requirement.
  • Inner grooved copper tubes with blue aluminium fins.
  • Blue fins prevent corrosion & dust accumulation and inner
  • grooved copper tubes increase surface area means more
  • heat transfer.
  • Housing with powder coating.



Design Parameters



  • Ambient Temperature 45°c
  • Air Inlet Temperature 48°c
  • Working Pressure 7Kg/cm2
  • PDP + 3°C (for PDP at other parameters,
  • please refer correction factor table below).



Front Control Panel :

  • MCB, Contactor, Relay, SPP, Fuses are accessible from front panel
  • Spares fuses are provided for easy and quick replacement
  • MCB, Contactor, Relay, and Fuse protection for compressor
  • Fuse protection for drain valve, controller and fan
  • Dryer operation is visible at a glance at the control panel



Indications & Controls :

  • PDP
  • Suction Pressure Gauge (Upto 80 cfm)
  • Discharge Pressure Gauge (100 cfm & Above)
  • Fuse Protection, Over Load and Short Circuit
  • Single Phase Protection, Phase Unbalance
  • and Phase Failure for 3Ø supply
  • Eco-Friendly Refrigerant :
  • R-134a / R-404a / R-407c
  • R-22a (Available)
  • HP Trip Indication

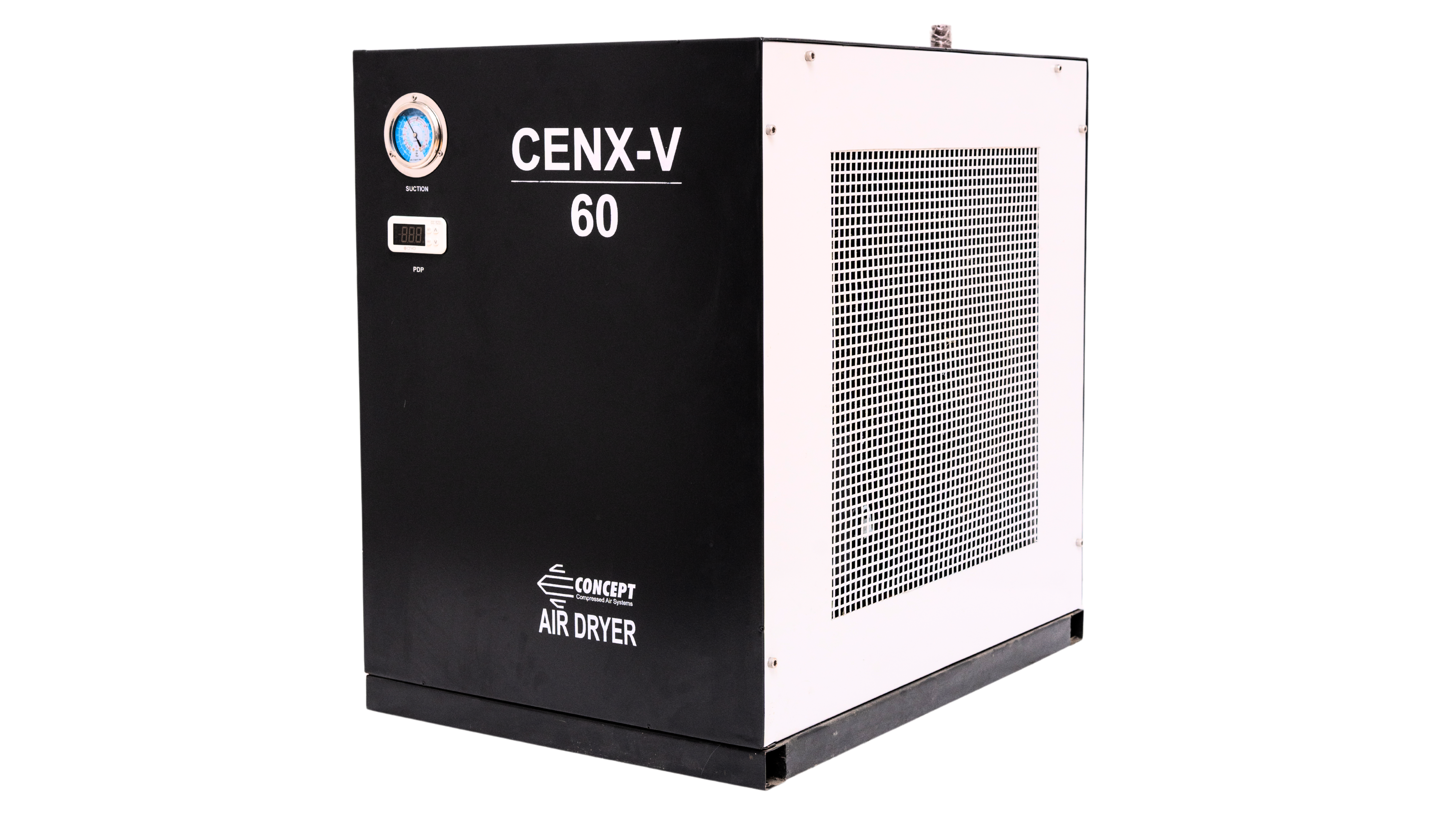

CENX-XX Refrigeration Air Dryer

The CENX-XX Refrigeration Air Dryer is a high-performance solution designed to ensure superior compressed air quality for industrial applications. By effectively removing moisture, it enhances the durability of equipment and supports consistent production quality. This air dryer is tailored for diverse operational demands, offering robust reliability and energy-efficient performance.

Why Choose the CENX-XX?

  • Engineered for a broad operational range, it caters to various air compression requirements, ensuring flexibility and adaptability.
  • Advanced construction materials and coatings provide long-term durability, even in challenging environments.
  • Integrated components streamline operation and minimize energy consumption, reducing overall costs.

Enhanced Efficiency

With cutting-edge design, including a 3-IN-1 heat exchanger, the CENX-XX maximizes energy recovery and minimizes load on critical components. This contributes to a greener operation without compromising performance.

User-Friendly Design

The air dryer’s intuitive control panel simplifies operation and maintenance, with real-time indicators and protective features that ensure safe and efficient use.

Applications

The CENX-XX is ideal for industries demanding precise air quality, such as manufacturing, automotive, and food production. Its robust design ensures reliability across various environments.

Choose the CENX-XX Refrigeration Air Dryer for an efficient, eco-conscious, and dependable solution to meet your air compression needs.
