| Display | : 3 Digit 7 Segment LED |
| Supply | : 110 V AC/230 V AC, 50Hz (Please Specify) |
| Range | : ONTIME (0-999 S/M/H (Factory set 1-9) |
| OFF Time | : 0-999 S/M/H (Factory set 99.9 Min.) |
Enclosure: Polycarbonate with IP65 (Weather Proof)
Valve: SS 304 (As per requirement)
Working Pressure: 16 Kg/cm² / 40 Kg/cm²
Connection: ½” BSP (F)
Press the key and power on the instrument to configure settings such as cycle on/off time. Use the DIP switches for additional configurations.
Configure ON and OFF times for the instrument using the provided keys. The instrument will save parameters after 4 seconds of inactivity.

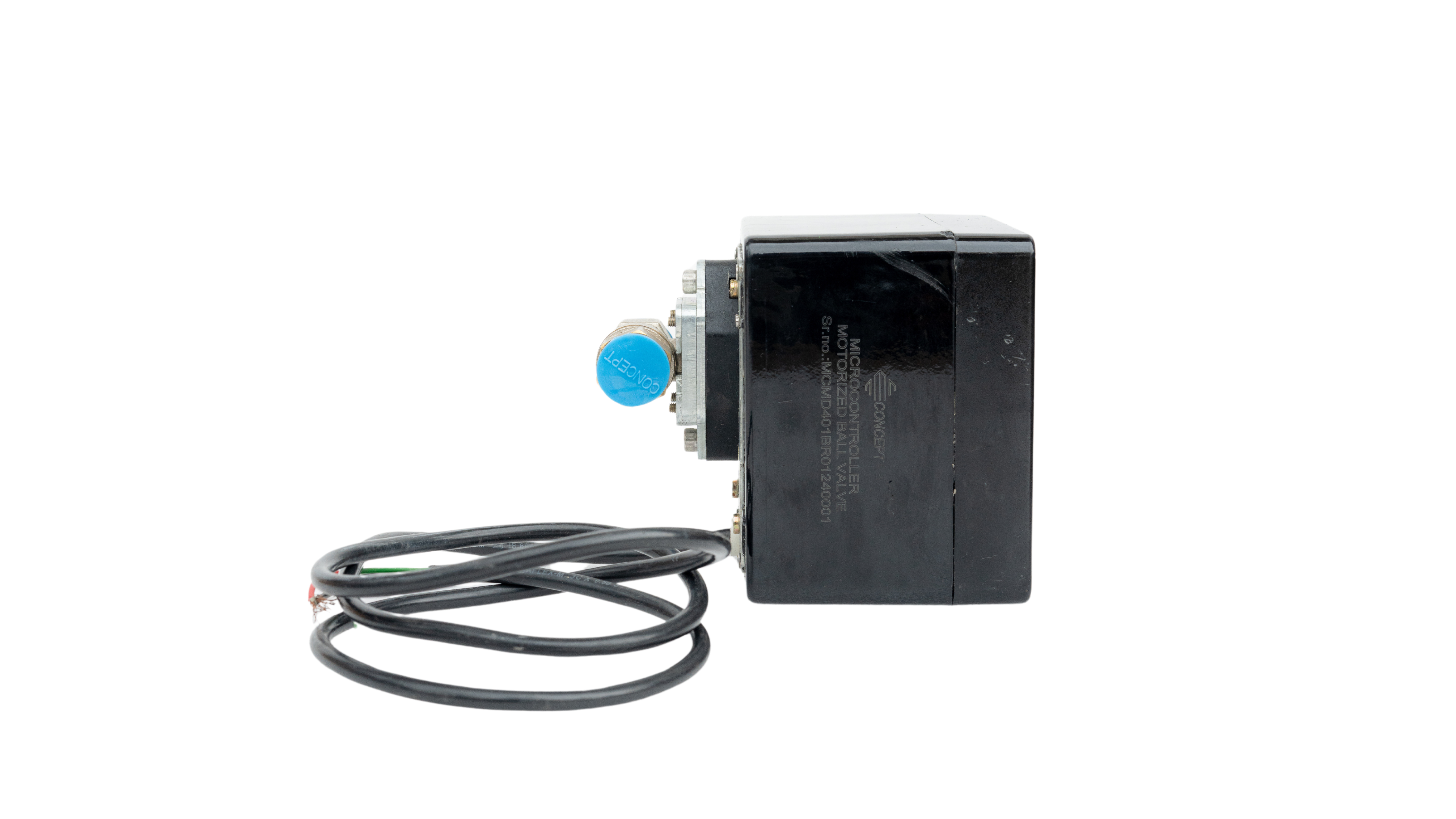

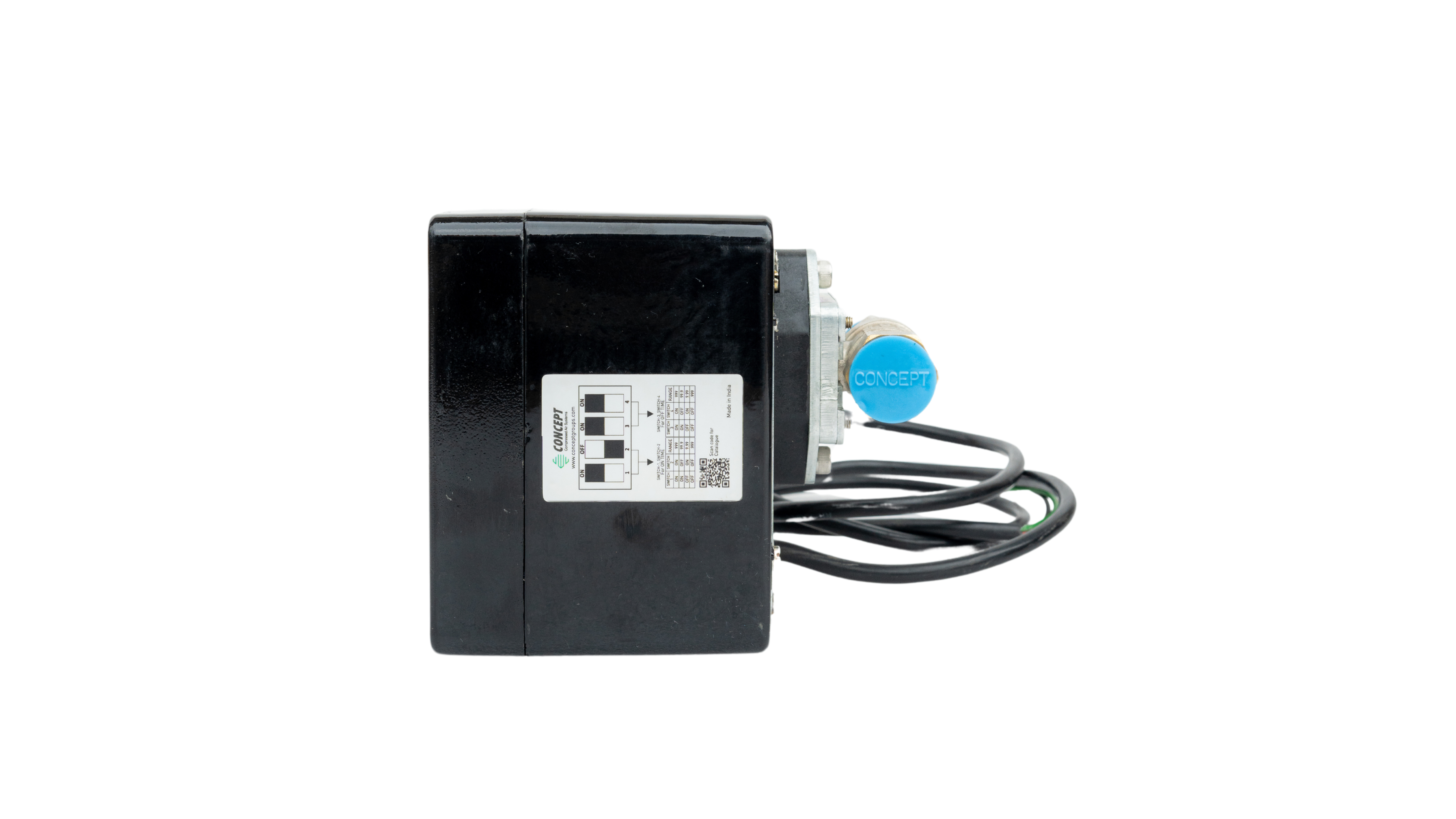

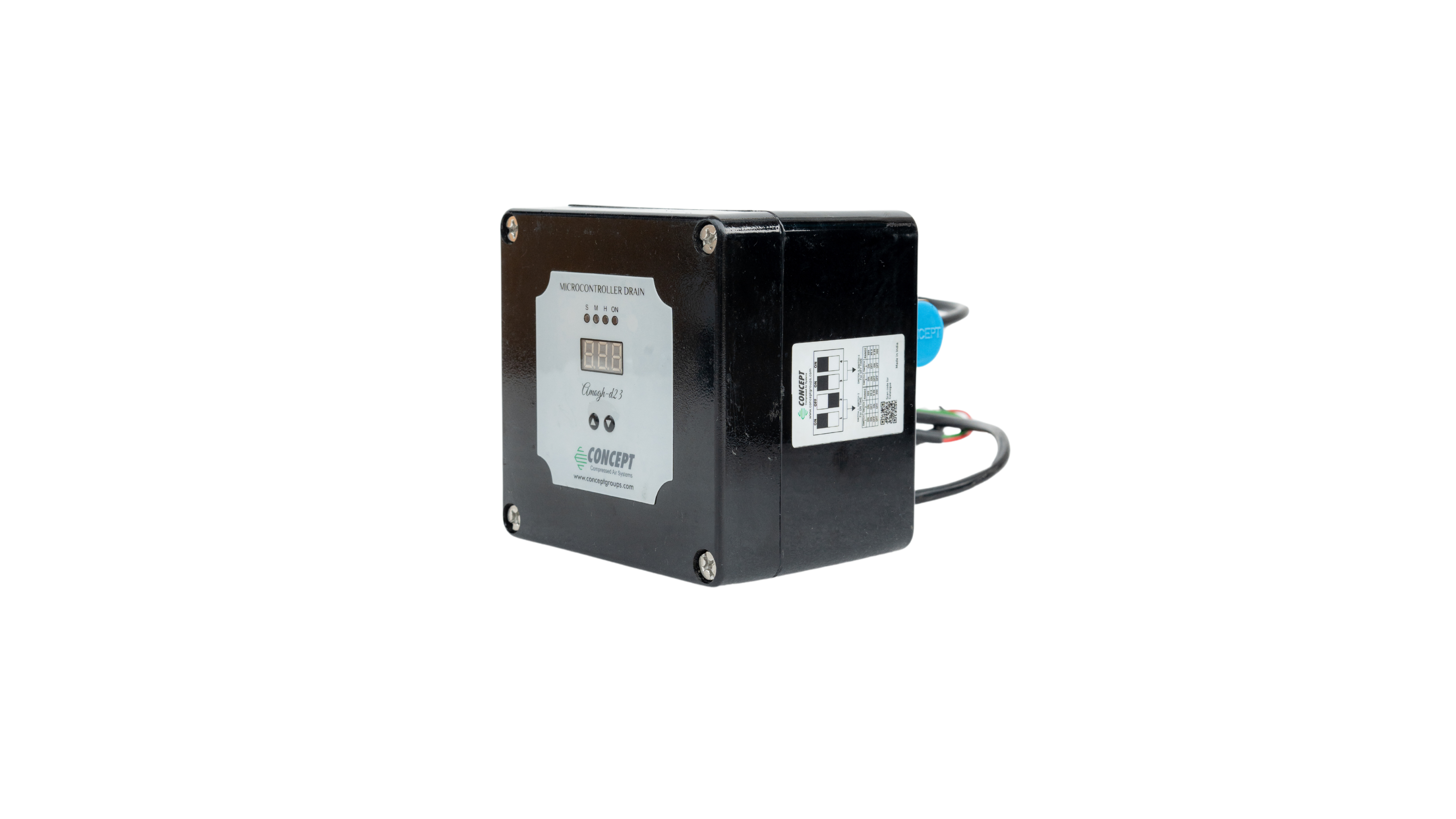

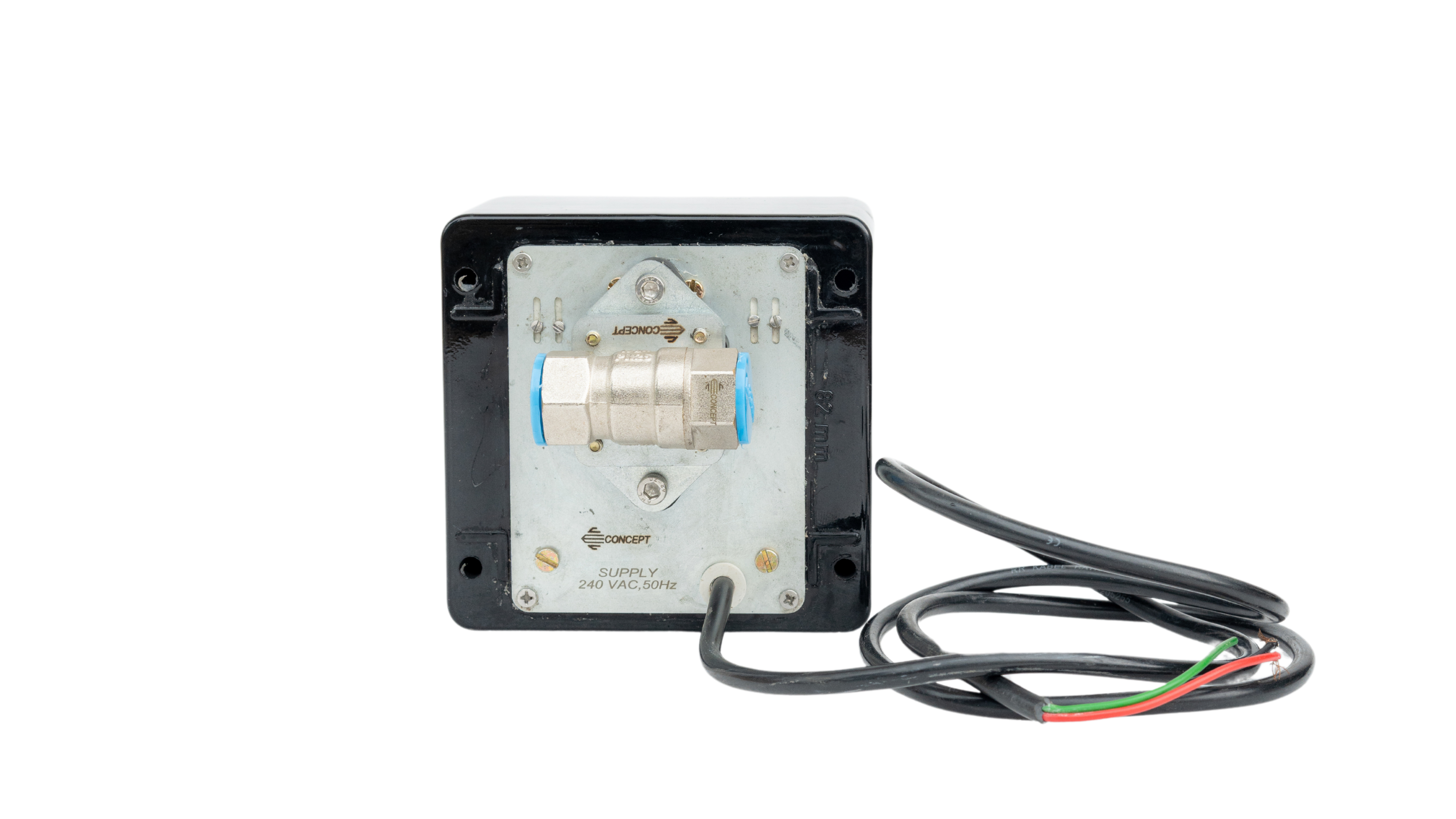

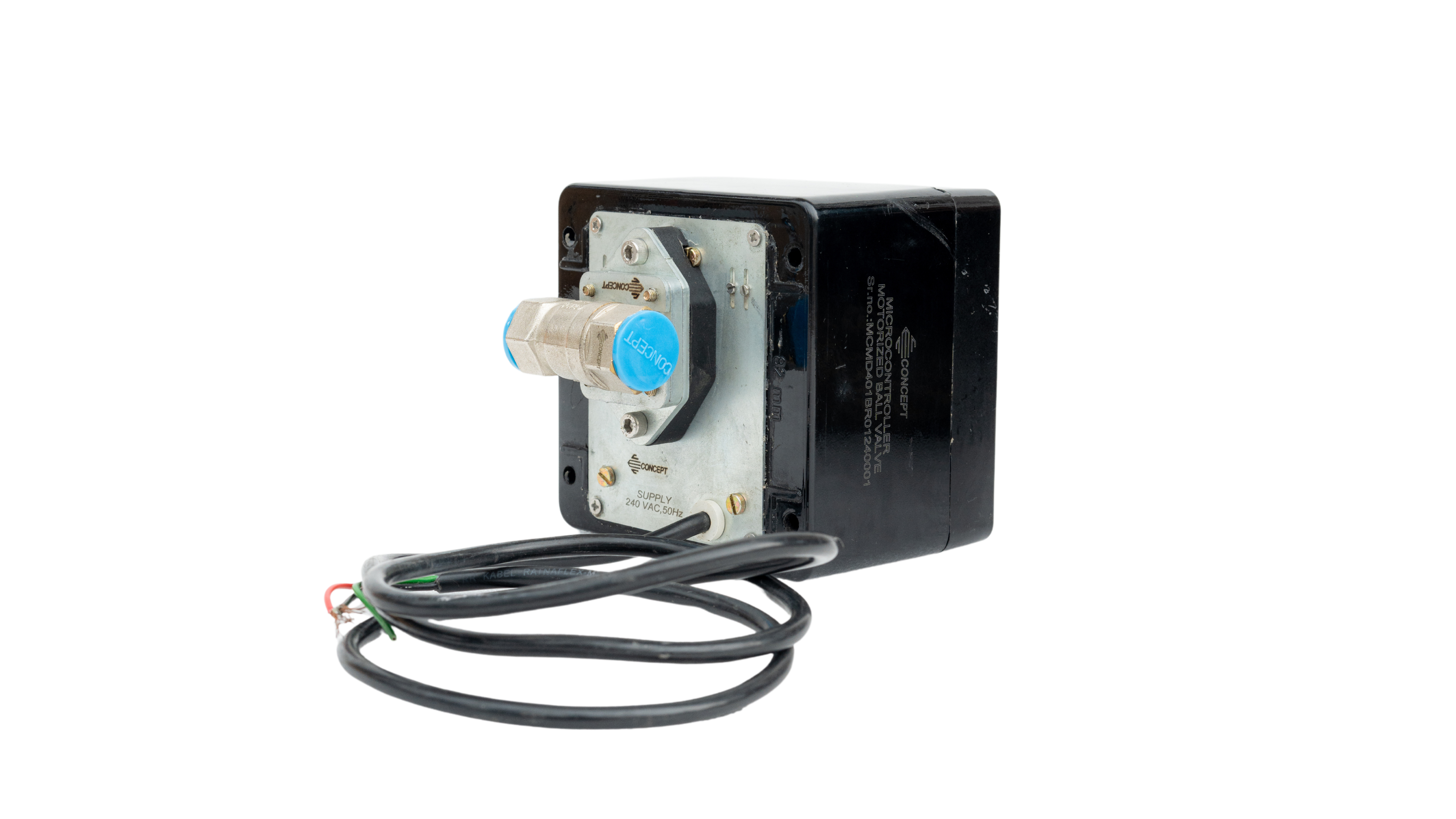

The Amogh-dd-23 Motorised Auto Drain revolutionizes automated drainage systems with its advanced microcontroller technology and customizable timing settings. Featuring a 3-digit 7-segment LED display, polycarbonate weatherproof enclosure (IP65), and robust SS 304 valve options, this system is built for reliability. Operates under working pressures up to 40 Kg/cm² and offers a wide timing range (0-999 S/M/H). Ideal for industries requiring precise and durable solutions for drainage automation. Configure settings easily using DIP switches and an intuitive interface. A perfect choice for maximizing efficiency and performance.
