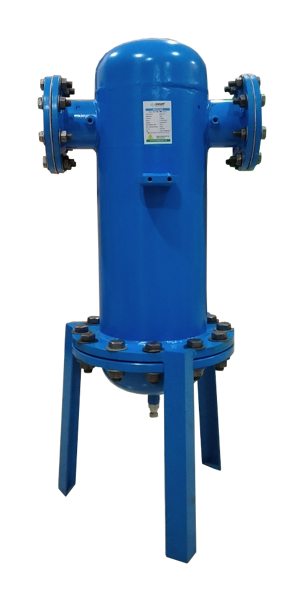

MOISTURE SEPARATOR WITH FILTER

Description
Additional Information

Features:

Low pressure drops assuring high energy savings.
Extremely purified reservoir allowing large condensate volume.
Large capacity reservoir for high condensate handling.
Drainage layer for effective operation.
Closure provided by seal cannot be opened while filter is under pressure.
Inlet air temperature up to 100°C (Max.).
Auto drain (optional).
MWP 16 Kg/cm² (optional 40 Kg/cm²).
Housing made of MS/CS as per customer requirements.

Filter Specifications

S. No.	Filter Model	Flow (CFM)	Flow (M³/Hr)	In/Out Connection	Drain Connection	Dimension in mm (A-F)						Element Length	O Ring Size	No. of Elements	Element Code
1	CAMS-0600	600	1038	2" BSP (F)	½" BSP (F)	285	135	850	400	156	276	350	190x5.3mm	1	ELMF600100X350
2	CAMS-0800	800	1384	2-1/2" BSP (F)	½" BSP (F)	305	144	1000	550	156	276	500	190x5.3mm	1	ELMF800095X350
3	CAMS-1000	1000	1730	3" BSP (F)	½" BSP (F)	394	148	875	400	208	342	350	235x5.3mm	2	ELMF500095X350
4	CAMS-1500	1500	2595	3" BSP (F)	½" BSP (F)	444	159	950	400	270	406	350	291x5.3mm	3	ELMF500095X350
5	CAMS-1500	1500	2595	4" Flange (FL)	½" BSP (F)	458	159	950	400	270	406	350	291x5.3mm	3	ELMF500095X350
6	CAMS-2000	2000	3460	4" Flange (FL)	½" BSP (F)	458	162	1025	550	270	406	500	290x5.3mm	3	ELMF800095X500

Explore our advanced filtration solutions with features like low-pressure drops, large capacity reservoirs, and customizable housings. Discover specifications for models like CAMS-0600 to CAMS-2000, offering efficient filtration with high flow rates, durable components, and energy savings. Ideal for various industrial applications requiring optimal filtration performance.
