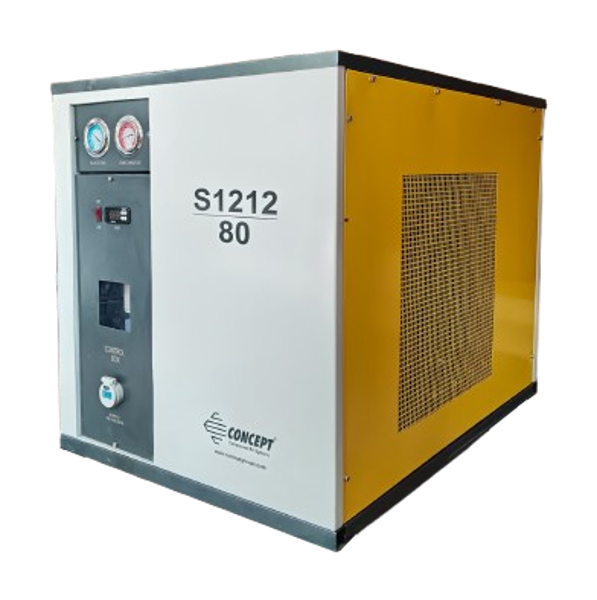

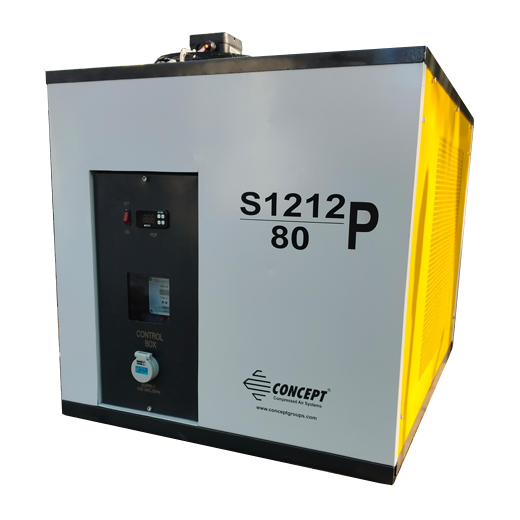

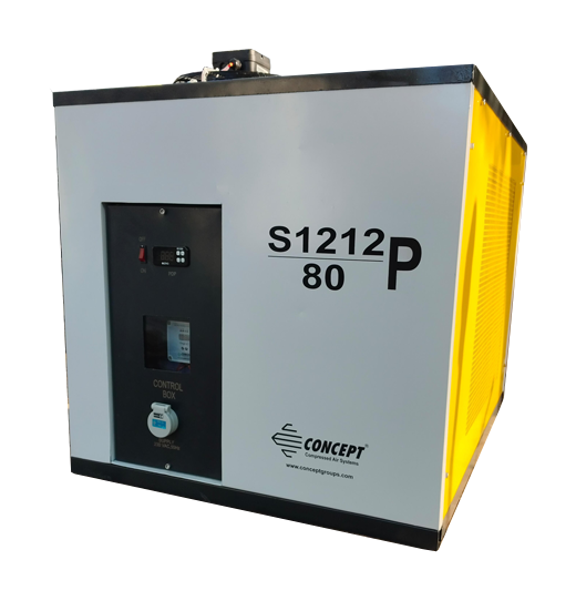

DRYER FOR LASER CUTTING

LASER DRYER

SKU: S-1212

CONCEPT S1212 is designed for laser cutting machine application to get desired quality class of compressed air. The Dryer is equipped with all necessary filters required to get desired air quality designed for laser cutting machine.

Specification :

Flow60 to 200 CFM
MWP16 bar
Air Inlet Temp.450c (Max.)
Ambient Temp.450c
Dew PointBetter than -300c (PDP)
InbuiltMoisture Separator cum Filter, Pre-Filter, After Filter, Activated Carbon Filter, Desiccant + Molecular Sieve Tower.
Residual Oil Content0.003 mg/m3
Particle Down to0.01 Micron

Model

CFM

Connection Inlet / Outlet

S1212-60

60 CFM

¾"

S1212-80

80 CFM

¾"

S1212-100

100 CFM

1"

S1212-150

150 CFM

1-½"

S1212-200

200 CFM

1-½"

Benefits :

  • Low Air Loss Compared
  • Less Maintenance
  • Guards the lens & other optic system
  • Integrated with Moisture Separator, Pre-Filter, Desiccant Molecular Sieve Tower,After-FilterOil Filter and Activated Carbon Filter
  • 99% Condensed Moistureis removed before air enter the dryer.



Process : Laser Cutting is a thermal process and the auxiliary gas is necessary to help to ignite the material, such as oxygen or nitrogen but compressed air is

more economical choice.

Requirement : The air compression of laser cutting a most economical solution with high speed air product by the air compressor. Usually compressed air of 16 bar is required.

Air Quality Class : Beside high speed air flow, 16 bar pressure, it is also necessary to remove oil and dust particle from the compressed air usually it is recommended to use compressed air of quality grade 1:4:1 or 1:2:1 (as per ISO 8573-1).
