| Model | : | ILDD-054 |
| Inlet Port | : | ¼” BSP/6mm Polyurethane Tube |
| Outlet Port | : | ¼” BSP/6mm Polyurethane Tube |
| MWP | : | 12Kg./cm² |
| Body Material | : | Aluminium |
| Drain | : | Manual Drain / Automatic Drain Valve (Optional) |
| CFM | : | 10 |
Application:- Air Tools, Spray Painting, Powder Coating
Working:-

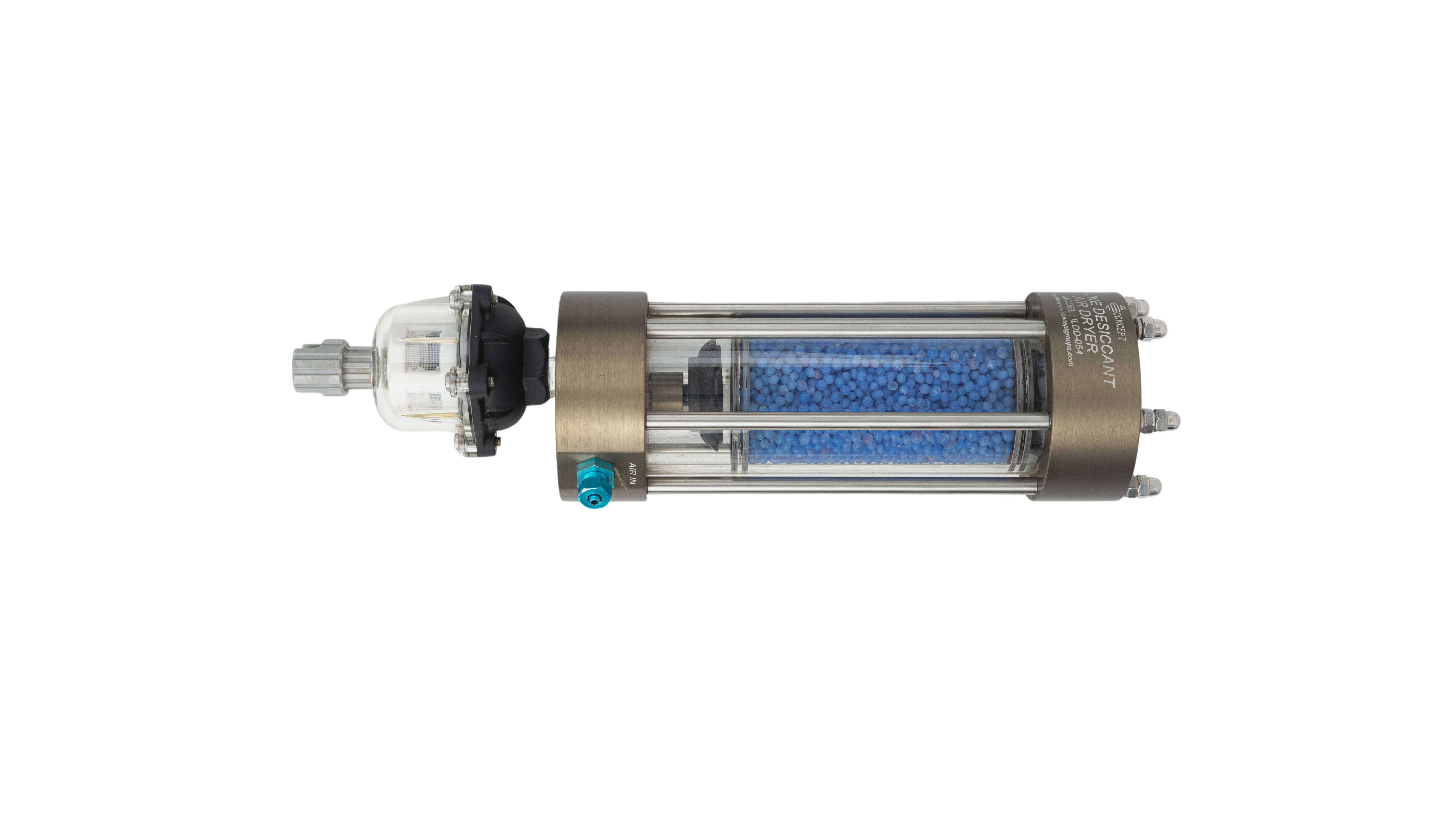

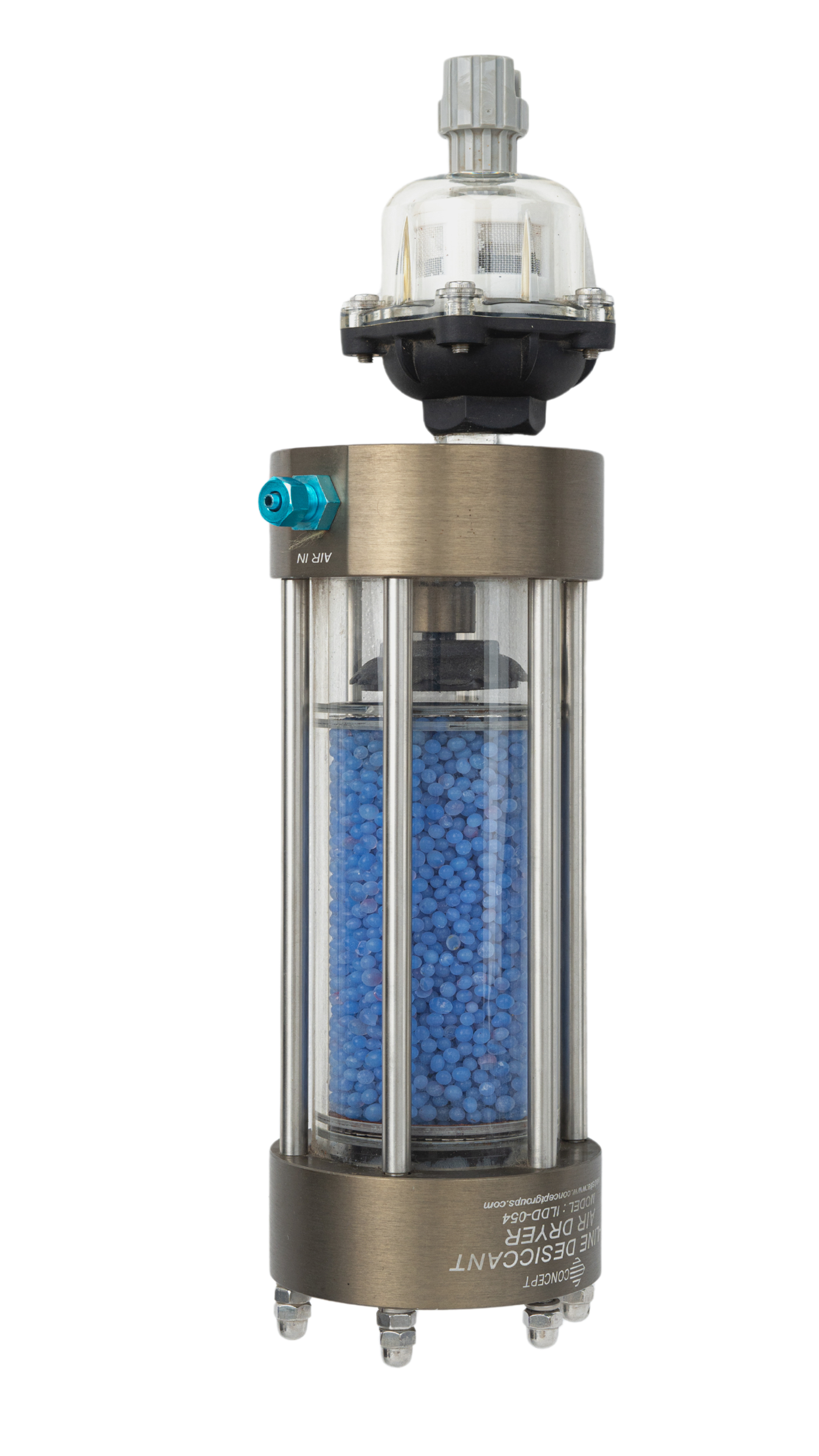

The compressed air flow through the bottom of the dryer and distributed uniformly and passed through the desiccant bed. The moisture is drained at the bottom either with manual drain or automatic drain valve (optional).
INSTALLATION :-
The installation can be done IN-LINE with flexible PU tube and connectors provided with the unit. Please see below the installation diagram.
