AUTOMATIC DRAIN VALVE

AUTOMATIC DRAIN VALVE

SKU: HDV-152

CONCEPT HDV-152

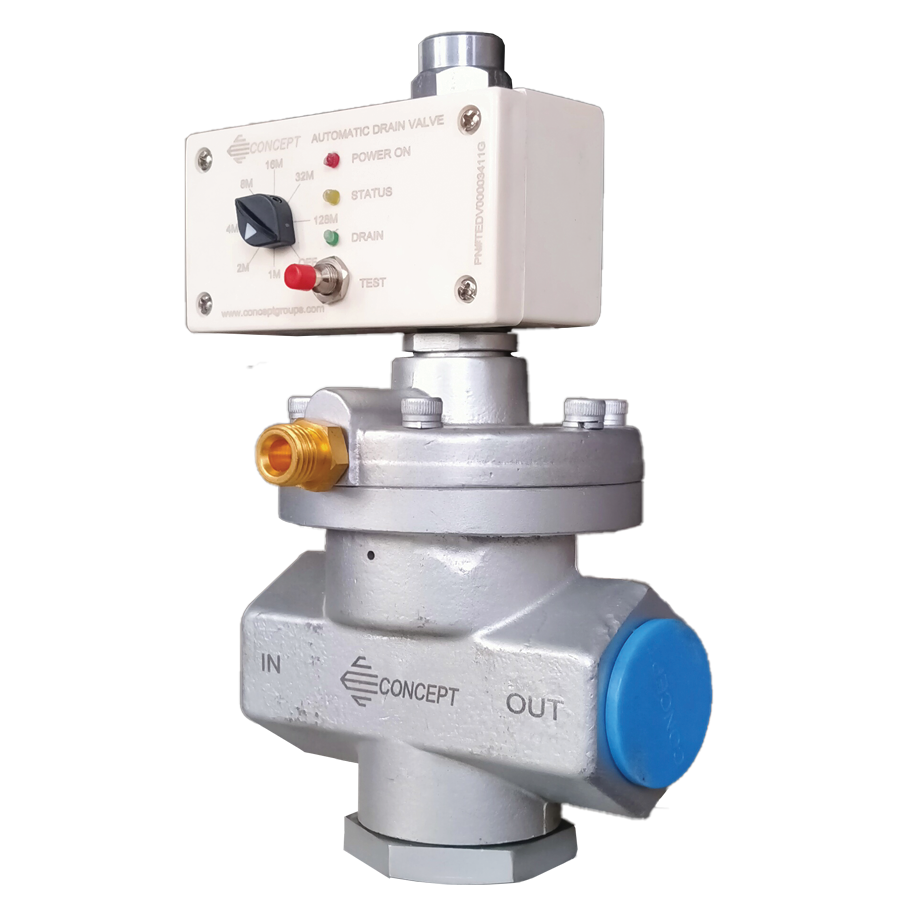

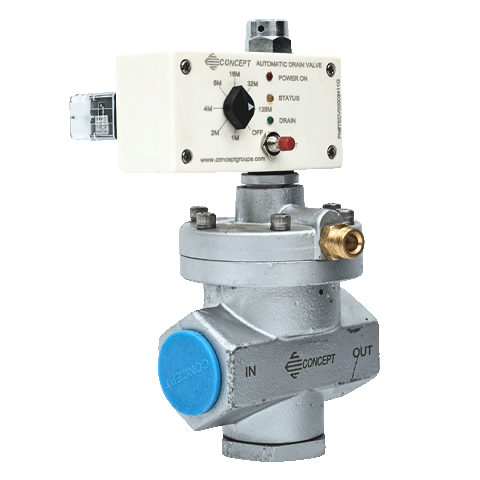

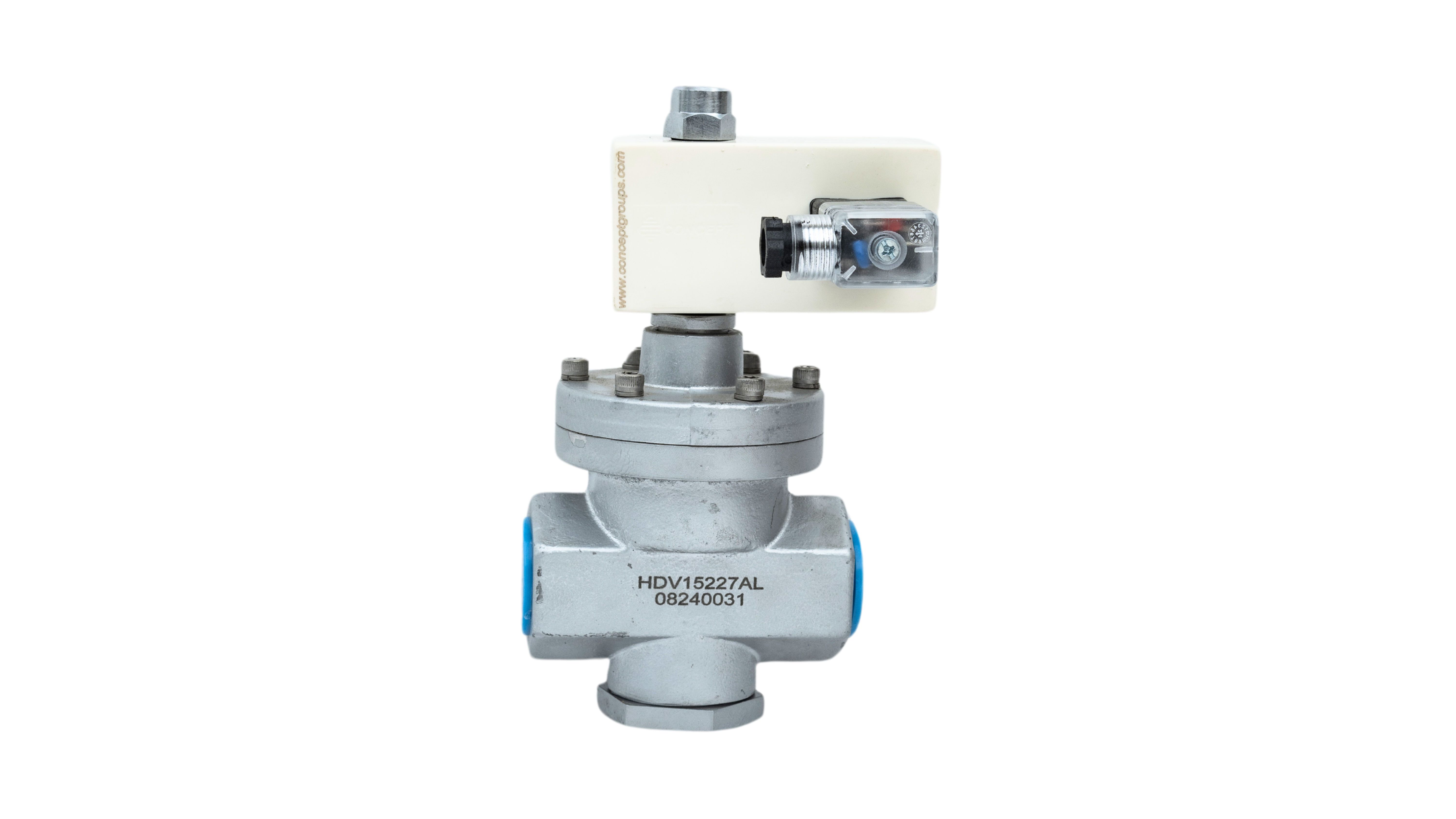

Designed to remove condensate from compressed air systems. Most suitable for installation on compressors, after coolers, drip legs, and moisture separators. The valve has a facility for manual drainage in case of power failure.

Specifications

Timer

  • Interval Time: 1-128 minutes adjustable
  • Drain Time: 4 seconds
  • Supply Voltage: 230VAC (160-260), 50Hz (other options available on request)
  • Operating Temperature: Maximum 70°C
  • Housing Material: High-impact resistant ABS
  • Connection: DIN 43650 A with power indication
  • Indications:
    • LED (Red): Power on
    • LED (Yellow): Blinks every 15 seconds to indicate timer health
    • LED (Green): Active during the drain cycle

Valve

  • Type: 2-way pilot operated
  • In/Out Ports: 1" BSP (F)
  • Working Pressure: 15 Kg/cm²
  • Valve Body: Bar stock aluminium
  • Orifice: 25 mm
  • Pilot Pressure: Minimum 2.5 Kg/cm²

Model Specifications

ModelOrificeMWP (Max Working Pressure)Connection SizeFeatures
HDV-15225 mm15 Kg/cm²1" BSP (F)
  • Poppet type
  • Compact
  • Test switch
  • Fault indication
  • Inbuilt strainer



The Concept HDV-152 Automatic Condensate Drain Valve is an advanced solution designed to efficiently remove condensate from compressed air systems, making it ideal for industrial applications. Engineered for use with compressors, after coolers, drip legs, and moisture separators, this drain valve features a high-impact ABS housing and a robust 2-way pilot-operated design. With adjustable interval and drain times, support for up to 15 Kg/cm² working pressure, and a durable 25 mm orifice, the HDV-152 ensures optimal performance and reliability. Its LED status indicators, compact design, and inbuilt strainer make it a dependable choice for maintaining system health and efficiency. Perfect for industries seeking precision and durability in compressed air management, the Concept HDV-152 enhances productivity while reducing downtime.
