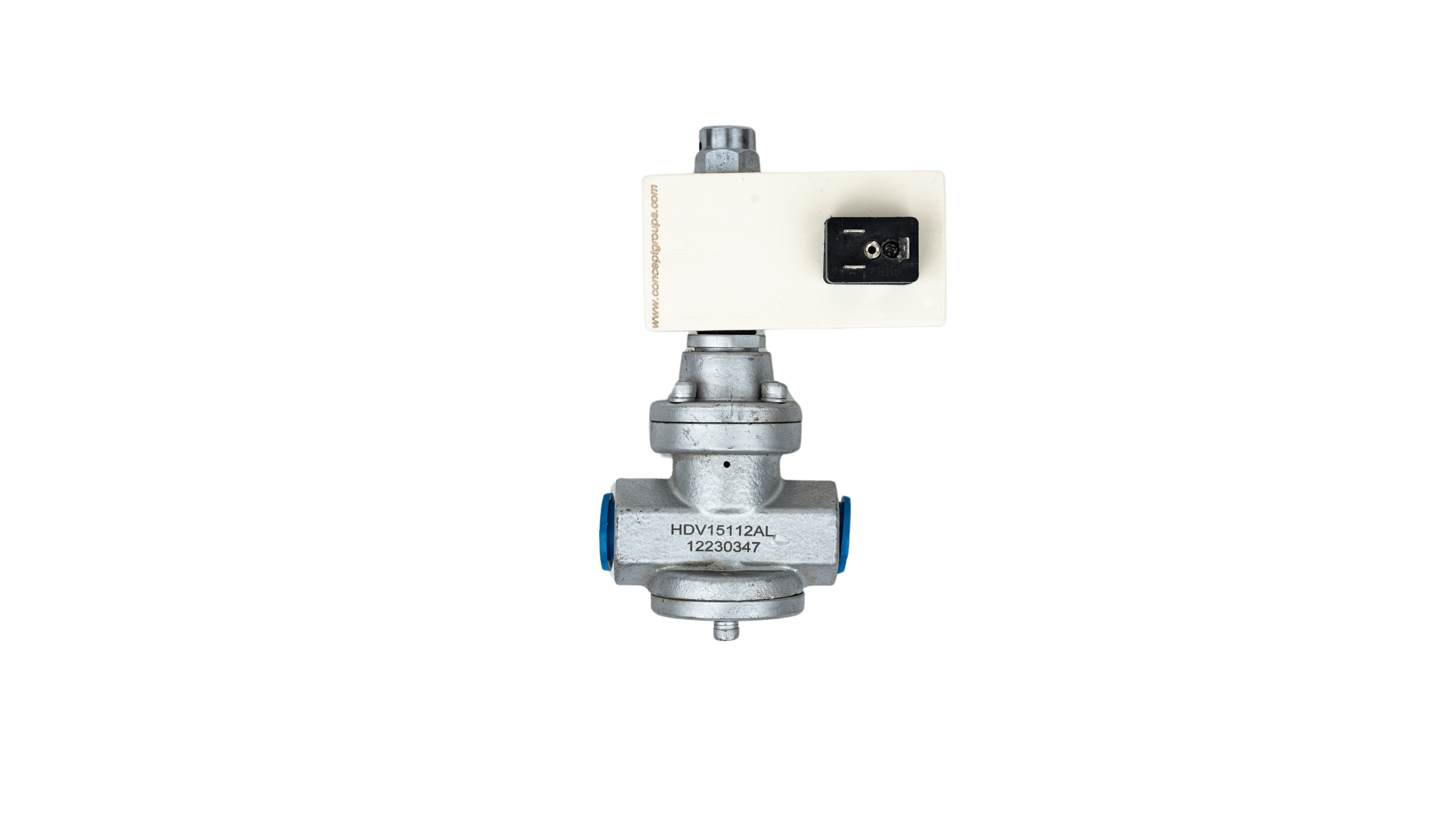

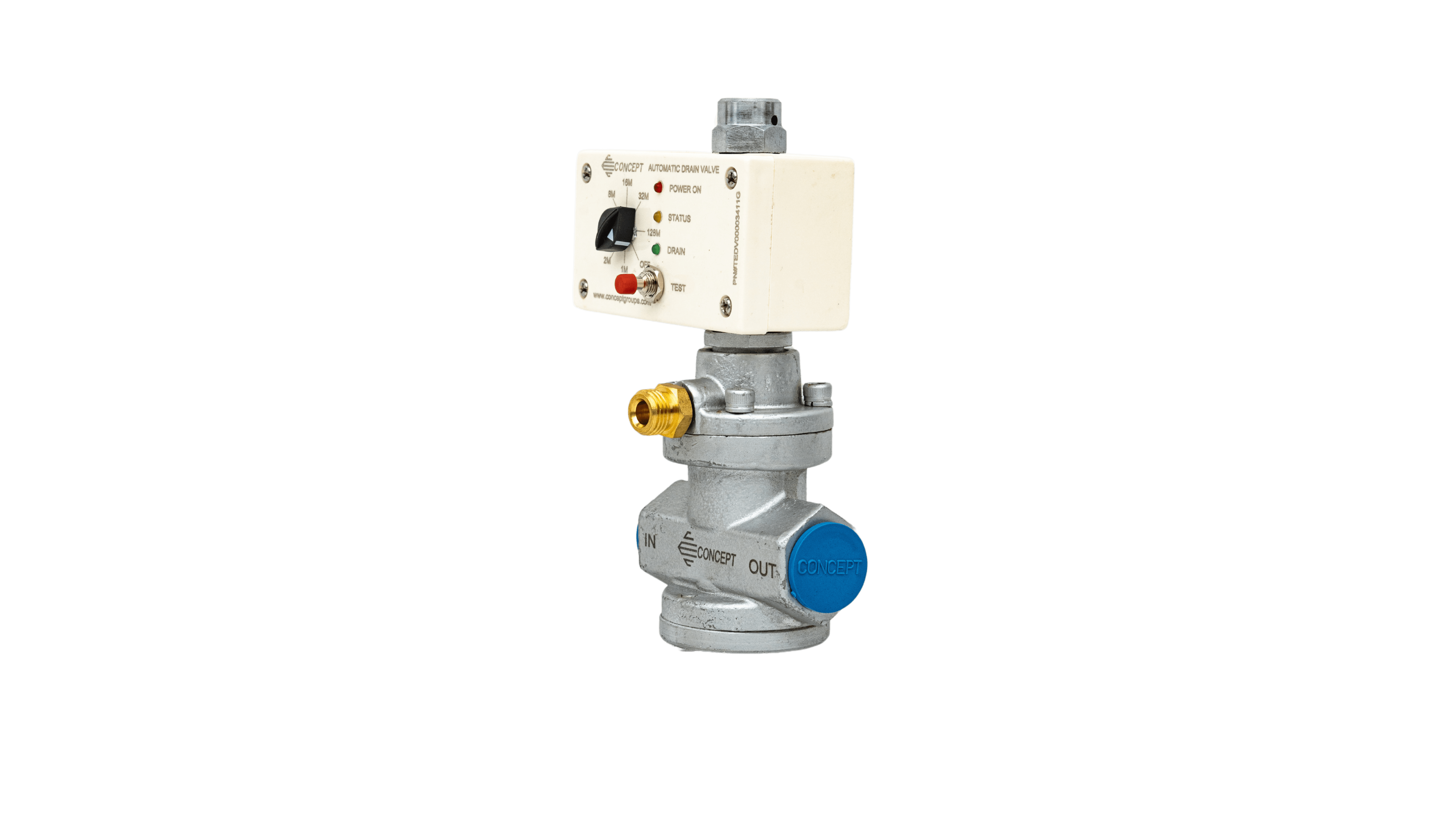

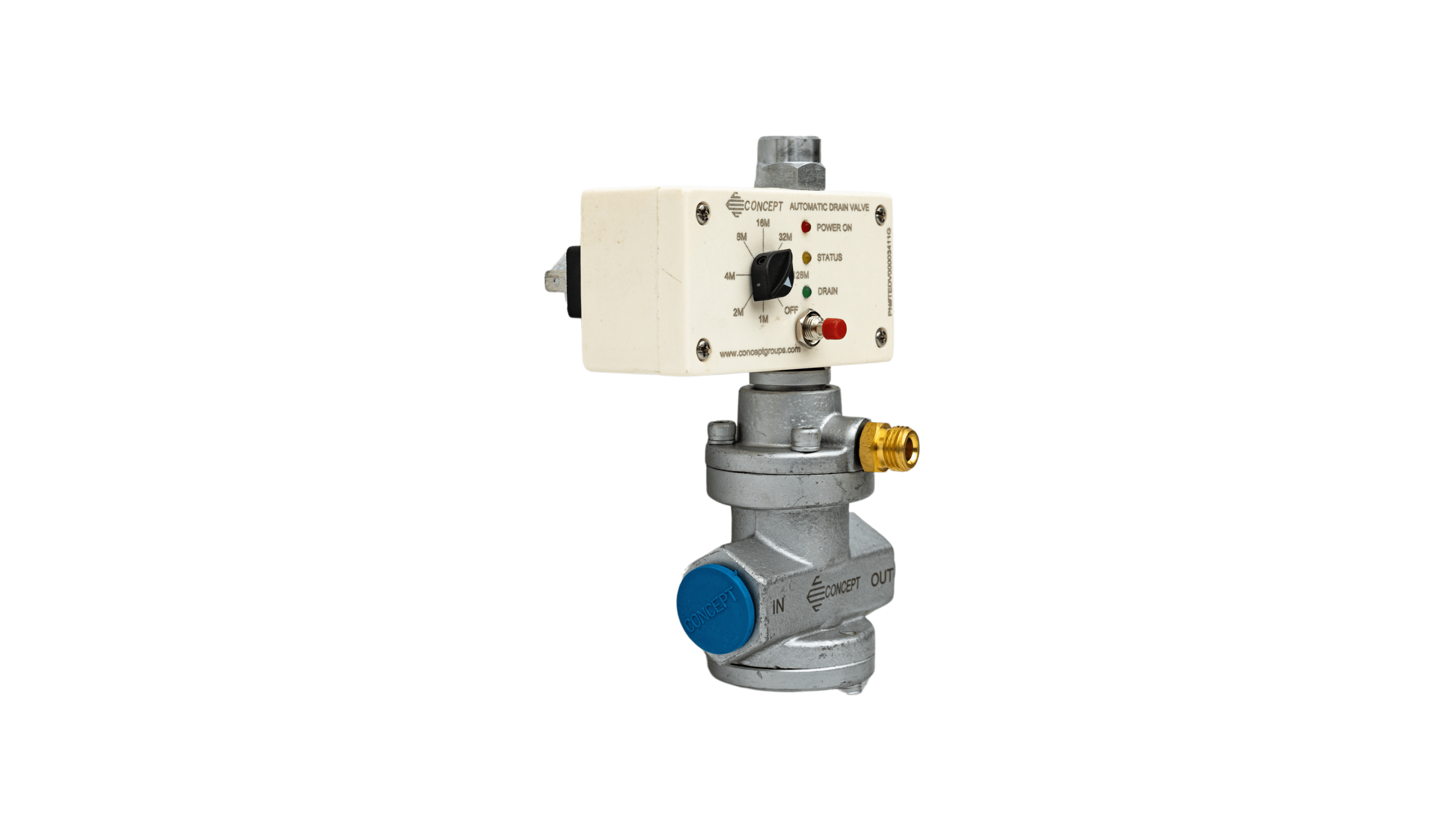

CONCEPT HDV-151

CONCEPT HDV-151 is designed to remove condensate from compressed air systems. Most suitable for installation on compressors, after coolers, drip legs, and moisture separators. The valve has a facility to drain manually on power failure.

Specifications

Timer

Interval Time: 1-128 Min. Adjustable
Drain Time: 4 Sec. Adjustable
Supply Voltage: 230VAC (160-260), 50Hz (Other on request)
Operating Temp.: 70°C (Maximum)
Housing Material: High Impact Resistant ABS
Connection: DIN 43650 A with Power Indication
Indications:
- LED (Red): Power On
- LED (Yellow): ‘On’ after every 15 Sec. Indicates healthiness of the timer
- LED (Green): ‘On’ during the drain cycle

Valve

Type: 2 Way Pilot Operated
In/Out Ports: ½” BSP (F)
Working Pressure: 15 Kg/cm²
Valve Body: Aluminium
Orifice: 12 mm
Pilot Pressure: Minimum 2.5 Kg/cm²

Model Specifications

Model	Orifice	MWP	Connection Size	Features
HDV-151	12 mm	15 Kg/cm²	½” BSP (F)	Compact Test Switch Fault Indication Inbuilt Strainer

Note: Adjustable 4-15 Sec. is available on request.

The CONCEPT HDV-151 is a high-performance condensate removal solution designed for compressed air systems. It’s ideal for installations on compressors, after coolers, drip legs, and moisture separators. Built with robust materials, it operates with precision, offering a compact design, multiple LED indicators, and manual drain functionality during power failure.
