AUTOMATIC DRAIN VALVE

AUTOMATIC DRAIN VALVE

SKU: ETD-121

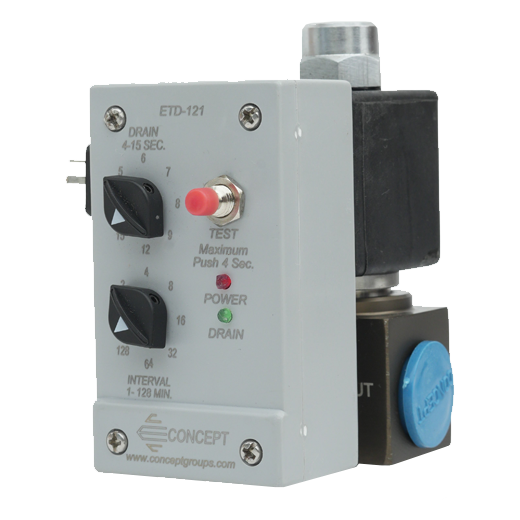

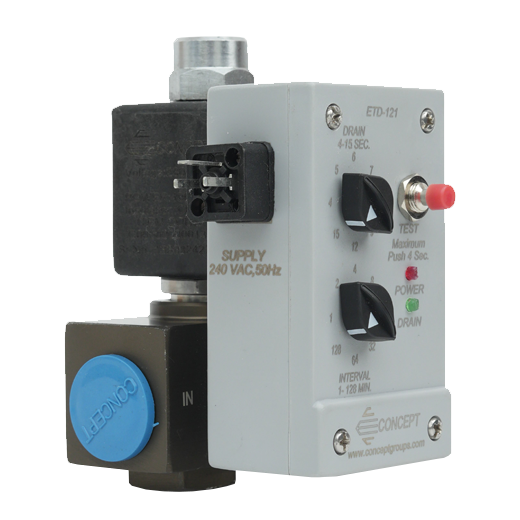

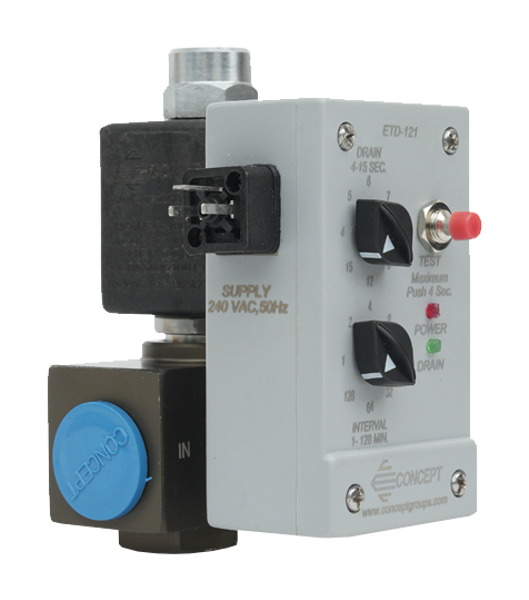

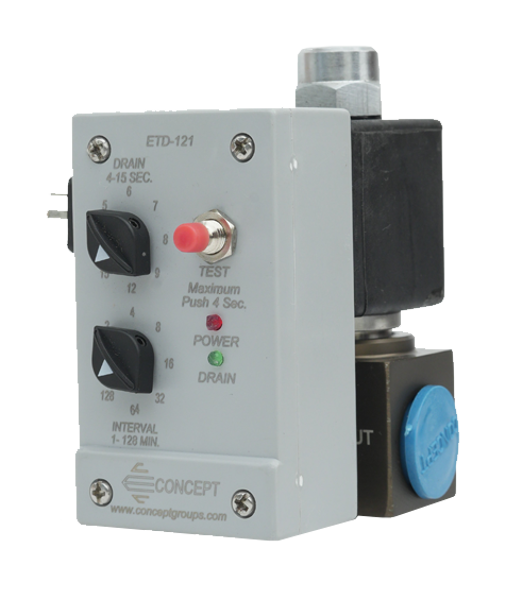

CONCEPT ETD-121

Designed to remove condensate from compressed air systems. Most suitable for installation on compressors, after coolers, drip legs, and moisture separators. The valve has a facility to drain manually on power failure.

Specifications

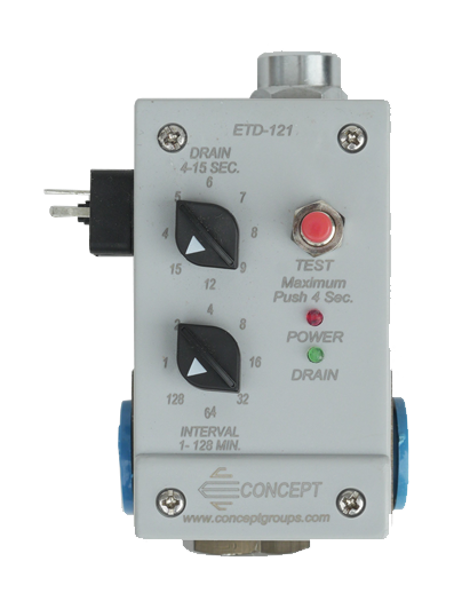

Timer

  • Interval Time: 1-128 Min. Adjustable
  • Drain Time: 4 to 15 Sec. Adjustable
  • Supply Voltage: 230VAC (160-260), 50Hz (Other on request)
  • Operating Temp.: 70°C (Maximum)
  • Housing Material: High Impact Resistant ABS
  • Connection: DIN 43650 A with Power Indication
  • Indications:
    • LED (Red): Power On
    • LED (Green): ‘On’ during drain cycle

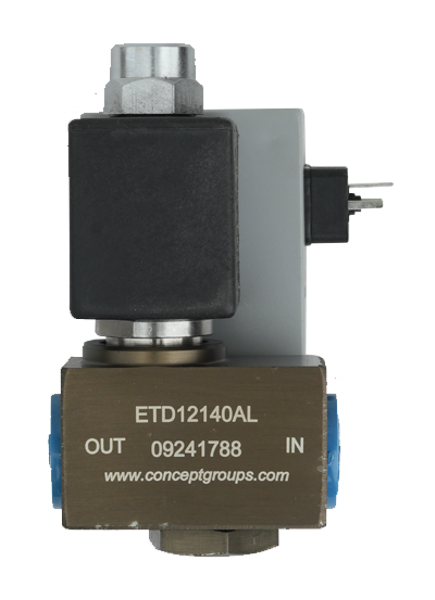

Valve

  • Type: 2 Way Direct Acting
  • In/Out Ports: ½” BSP (F)
  • Working Pressure: 12 Kg/cm²
  • MWP: 12 Kg/cm²
  • Valve Body: Bar Stock Aluminium
  • Orifice: 4 mm
  • Manual Drain: Manual drain by test switch

Model Specifications

ModelOrificeMWPConnection SizeFeatures
ETD-1214 mm12 Kg/cm²½” BSP (F)
  • Compact
  • Test Switch
  • Fault Indication
  • Inbuilt Strainer





The ETD-121 Auto Drain Valve is a high-performance device engineered for reliable condensate removal in various industrial applications. With a timer-controlled interval ranging from 1 to 128 minutes and adjustable drain times between 4 to 15 seconds, it provides precise control and energy efficiency. Built from high-impact ABS housing, it can withstand operating temperatures of up to 70°C. The valve features LED power and drain cycle indicators, a manual drain test switch, and a DIN 43650 A connection with power indication. Its 2-way direct-acting valve supports up to 12 Kg/cm² working pressure with ½” BSP (F) connections, ensuring compatibility with diverse systems. The compact, poppet-type design with an inbuilt strainer and fault indication offers ease of installation and maintenance.
