CONCEPT EDV-701 is Designed to Remove Condensate from Compressed Air Systems. Most Suitable for installation on Compressors After Coolers, Drip Legs, Moisture-separator etc. Valve has facility to Drain Manually on Power Failure.
Specifications :
Timer :
| Interval Time | : 1 | - 128 Min. Adjustable |
| Drain Time | : 4 | Sec. |
| Supply Voltage | : 230VAC (160-260), 50Hz (Other on request) | |
| Operating Temp. | : 70°C (Maximum) | |
| Housing Material | : High Impact Resistant ABS | |
| Connection | : DIN 43650 A with Power Indication | |
| Indications | : LED (Red)- Power On LED (Green)- ‘On” during drain cycle | |
Valve :
| Type | : 2 Way Direct Acting | Model - EDV-701 |
| In/Out Ports | : ½” BSP (F) | |
| Working Pressure | : 70 Kg./cm2 | |
| Valve Body | : Bar Stock Brass (Other on request) | |
| Orifice | : 0.9 mm | |
| Manual Drain | : Manual Drain by test switch |
Features - Fully Automatic - No Maintenance - Manual Test Switch - Adjustable Drain Time 4 Sec. Interval Time 1 to 128 Min. - ‘O” Ring seal on cycle adjustment pots to ensure weather proof sealing - Glass filled nylon coil former - Small compact resistant ABS Timer.

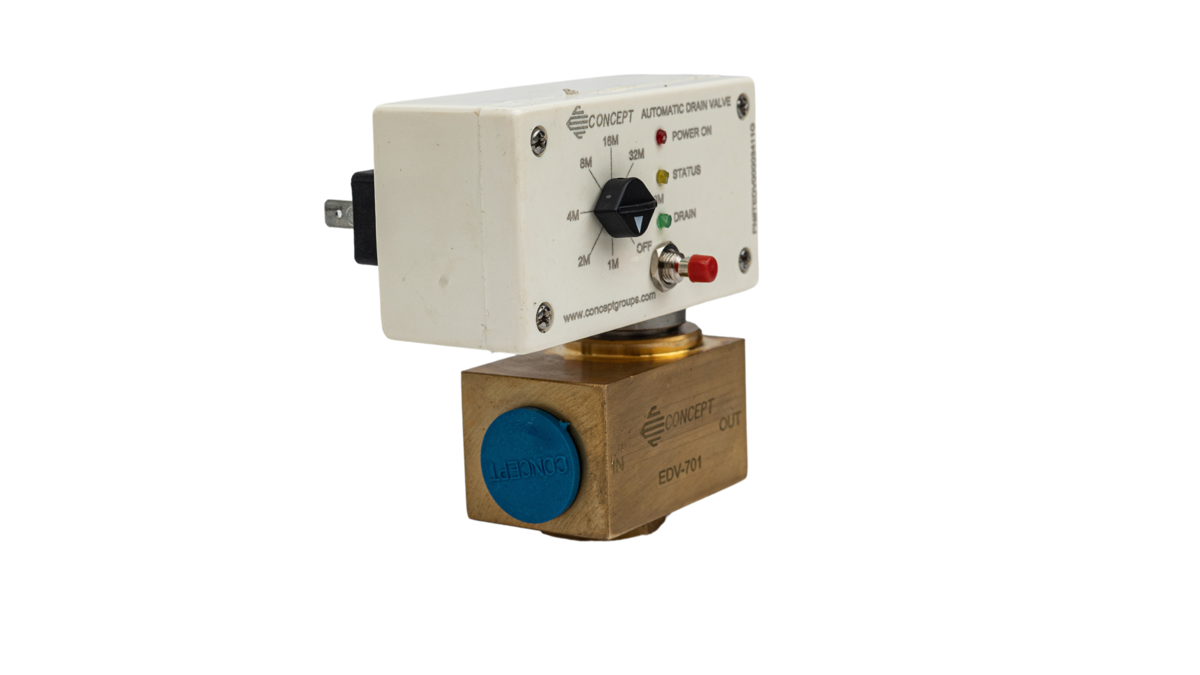

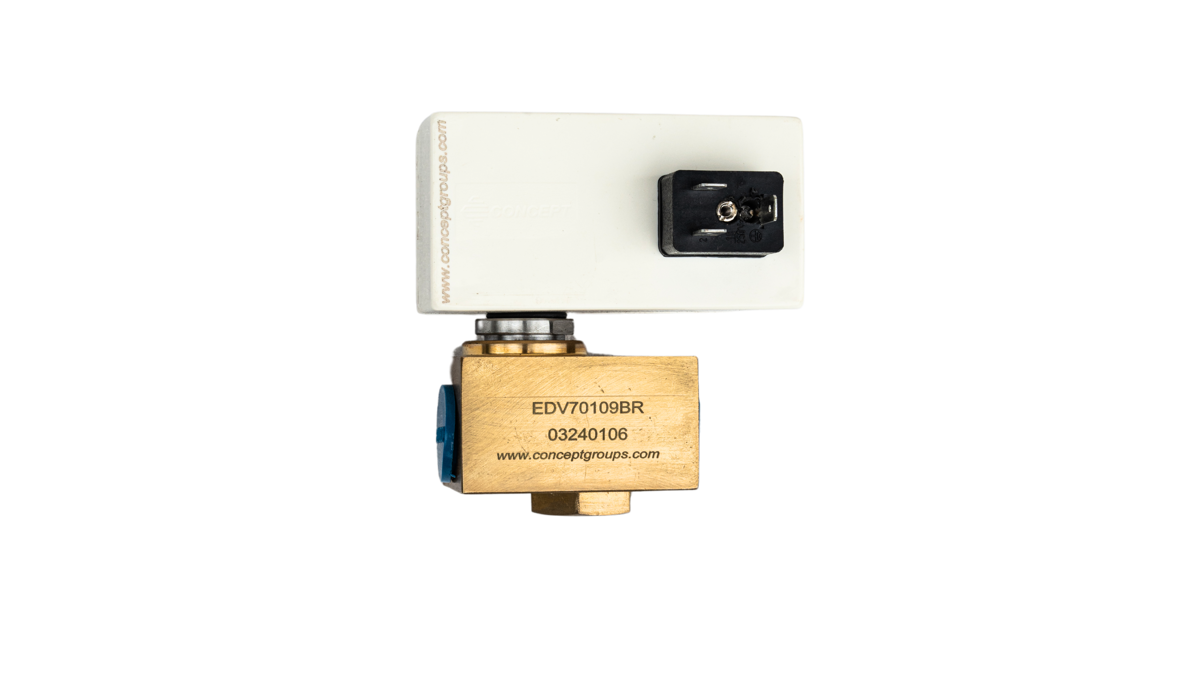

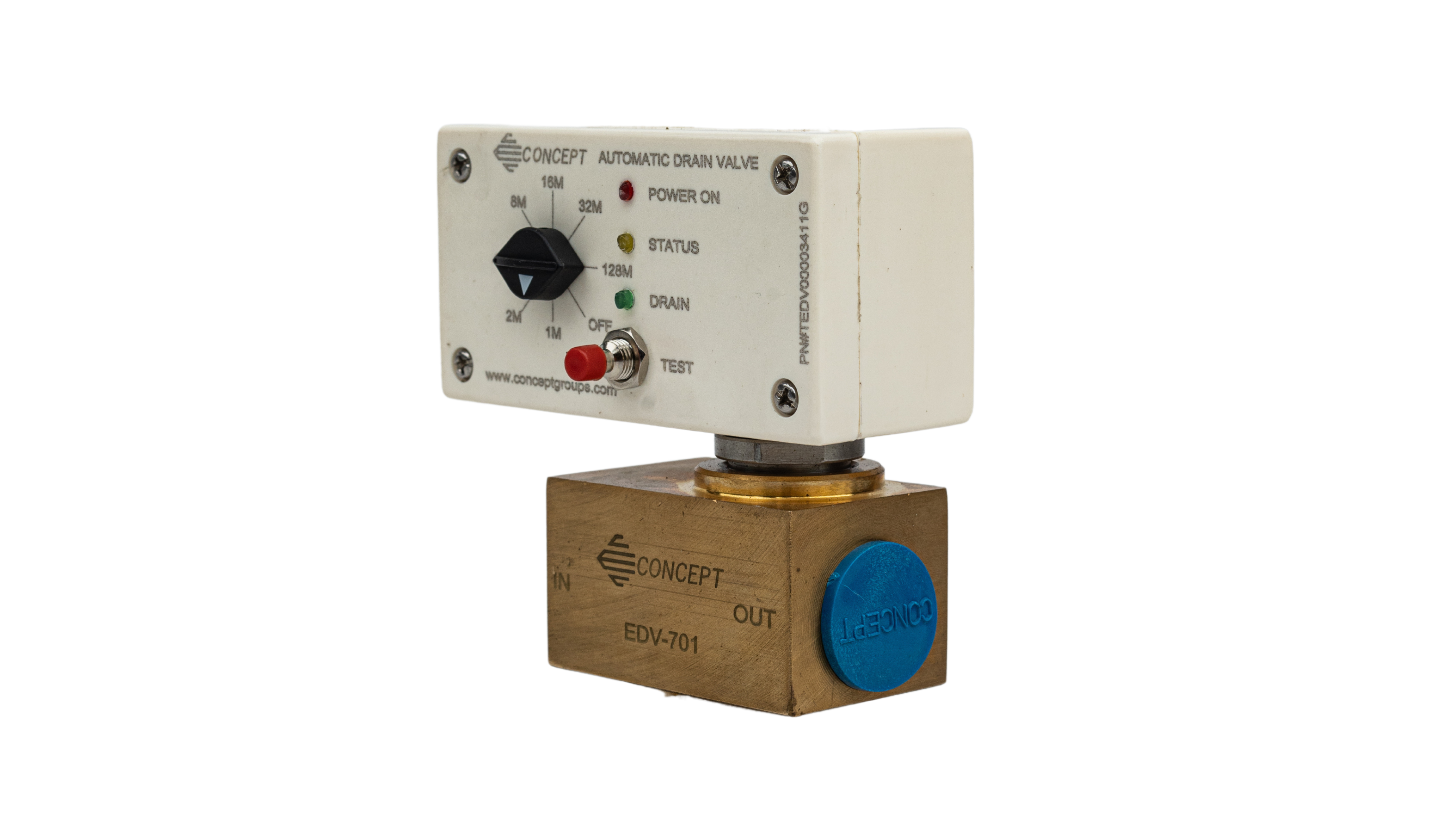

Automatic Drain Valve Model : EDV-701
| Model | Orifice | MWP | Connection Size | Features | Application | Remarks |
|---|---|---|---|---|---|---|
| EDV - 701 | 0.9 mm | 70 Kg/cm² | ½” BSP (F) | Poppet Type | Small Receivers, Air Bottles |
The Concept EDV-701 Automatic Drain Valve is a high-performance solution for removing condensate from compressed air systems. Engineered for reliability, this valve is perfect for compressors, after coolers, drip legs, and moisture separators, with the added benefit of manual drainage during power failures. Designed with a compact and weather-resistant ABS housing, it features an adjustable interval time (1-128 minutes) and drain time (4 seconds) to suit diverse industrial applications. The valve body is made of durable bar stock brass, capable of handling high working pressures up to 70 Kg/cm². With a ½” BSP (F) connection, LED power indicators, and a manual test switch, the EDV-701 offers fully automated, maintenance-free operation. Ideal for small receivers and air bottles, this versatile condensate drain valve ensures efficient, trouble-free performance for compressed air systems.
