Specifications :

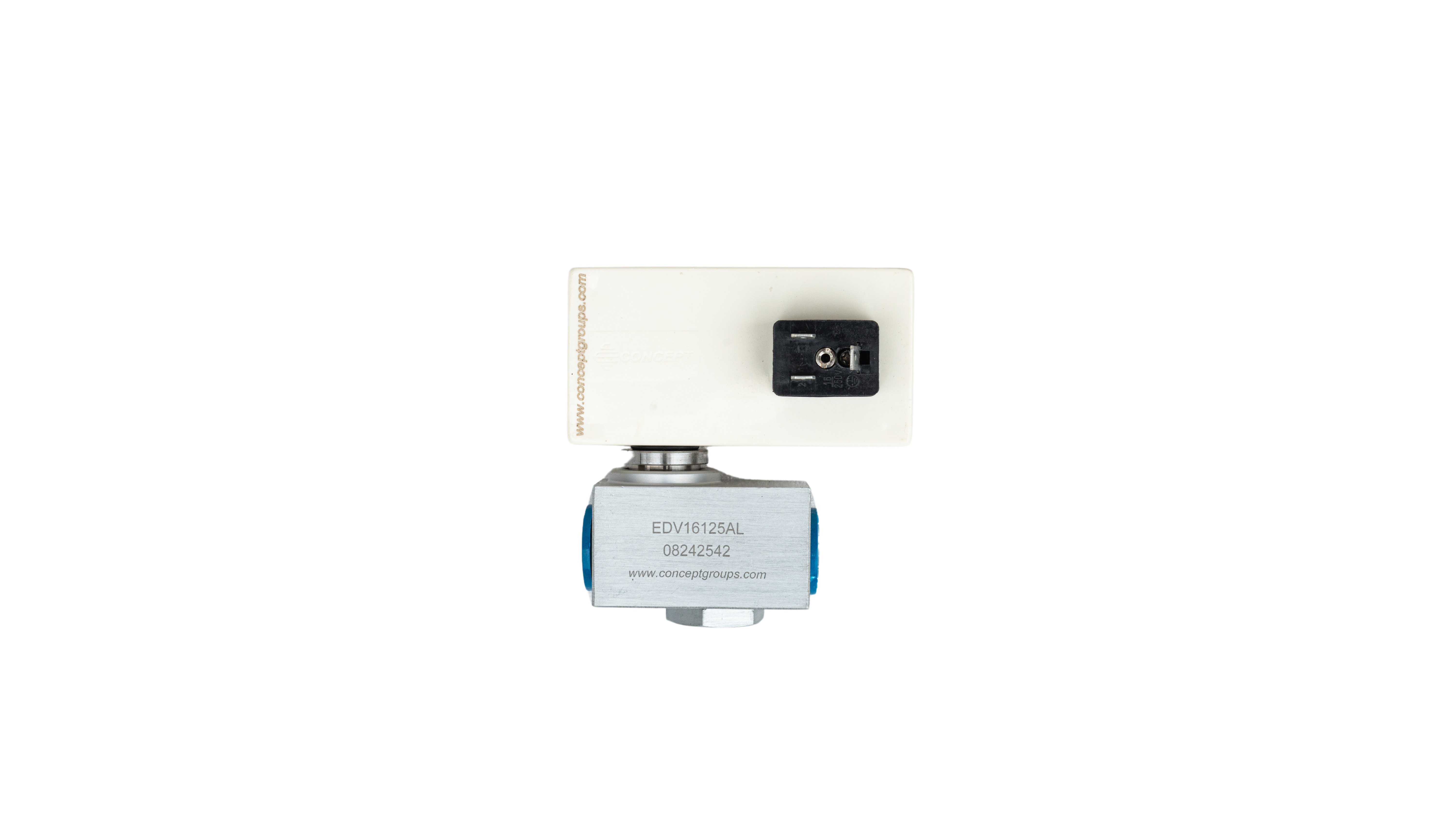

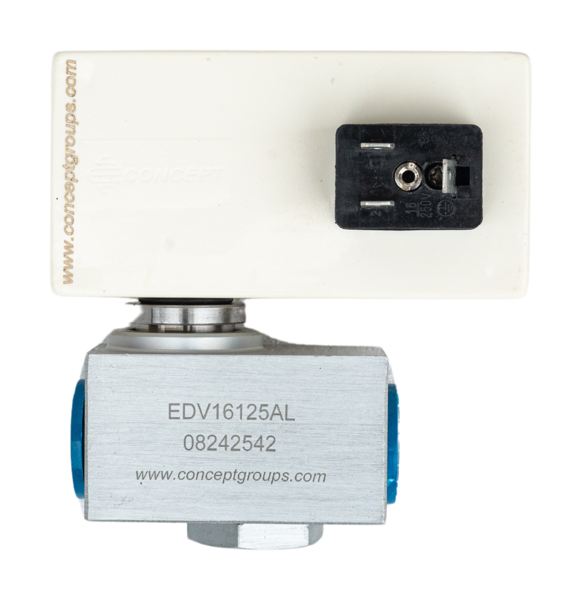

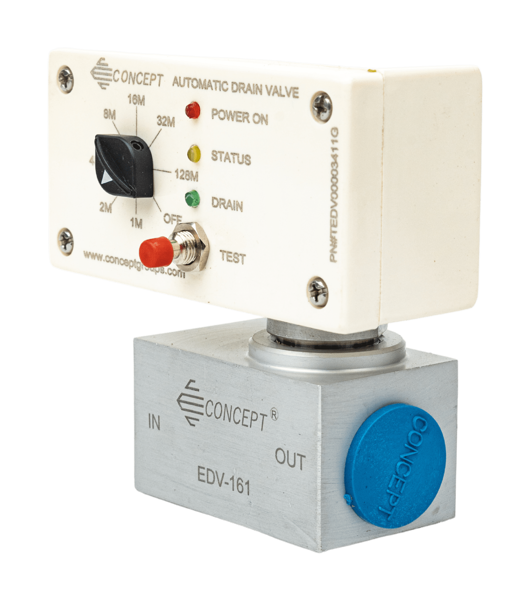

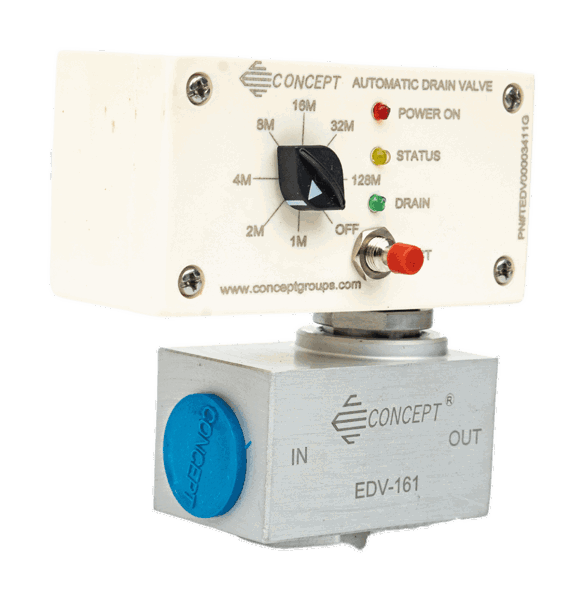

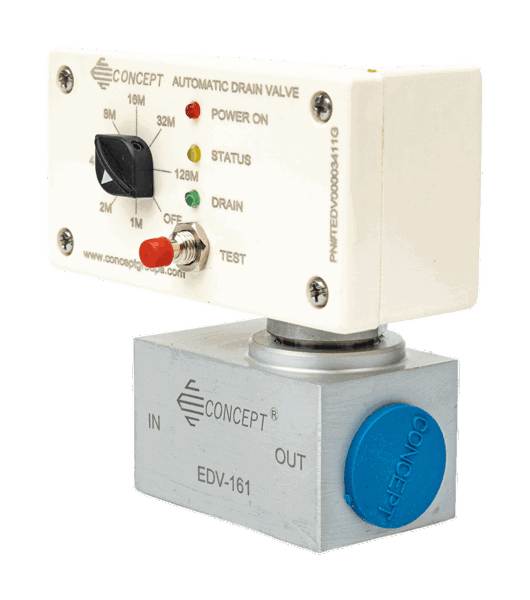

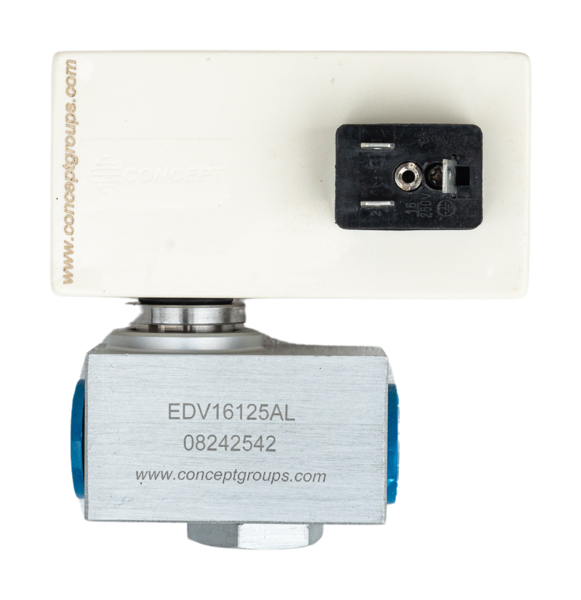

CONCEPT EDV-16X is Designed to Remove Condensate from Compressed Air Systems. Most Suitable for installation on Compressors After Coolers, Drip Legs, Moisture-separator etc. Valve has facility to Drain Manually on Power Failure.

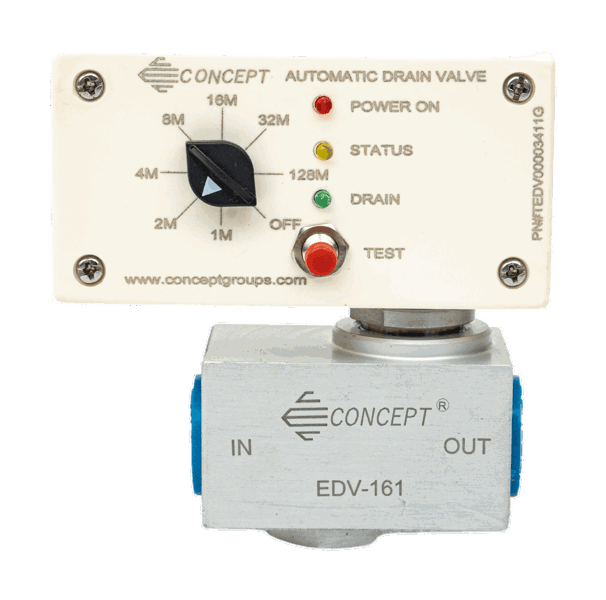

Timer
| Interval Time | : 1-128 Min. Adjustable |
| Drain Time | : 4 Sec. (Other on request) |
| Supply Voltage | : 230VAC (160-260), 50Hz (Other on request) |
| Operating Temp. | : 70°C (Maximum) |
| Housing Material | : High Impact Resistant ABS |
| Connection | : DIN 43650 A with Power Indication |
| Indications | : LED (Red)- Power On |
LED (Yellow)- ‘On” after every 15 sec. Indicate | |
Healthiness of timer | |
| Test Switch | LED (Green)- ‘On” during drain cycle |
| Valve |
|
| Type | : 2 Way Direct Acting |
| In/Out Ports | : ¼”/½”/¾”/1"BSP(F)* |
| Working Pressure | : 16 Kg./cm2 |
| Valve Body | : Bar Stock Aluminium with anodizing |
(Brass & S.S. On request) | |
| Orifice | : 2.5 mm |
Model | Orifice | MWP | Connection Size | Features |
| EDV-161 | 2.5 mm | 16 Kg/cm2 | ½" BSP (F) | Poppet Type, Compact, Test Switch, Fault Indication, Inbuilt Strainer |
| EDV-162 | 2.5 mm | 16 Kg/cm2 | 1" BSP (F) | Poppet Type, Compact, Test Switch, Fault Indication, Inbuilt Strainer |
| EDV-163 | 2.5 mm | 16 Kg/cm2 | 3/4" BSP (F) | Poppet Type, Compact, Test Switch, Fault Indication, Inbuilt Strainer |
| EDV-164 | 2.5 mm | 16 Kg/cm2 | 1/4" BSP (F) | Poppet Type, Compact, Test Switch, Fault Indication, Inbuilt Strainer |
