AUTO DRAIN VALVE MICRO CONTROLLER

Description
Additional Information

Amogh-dd-23

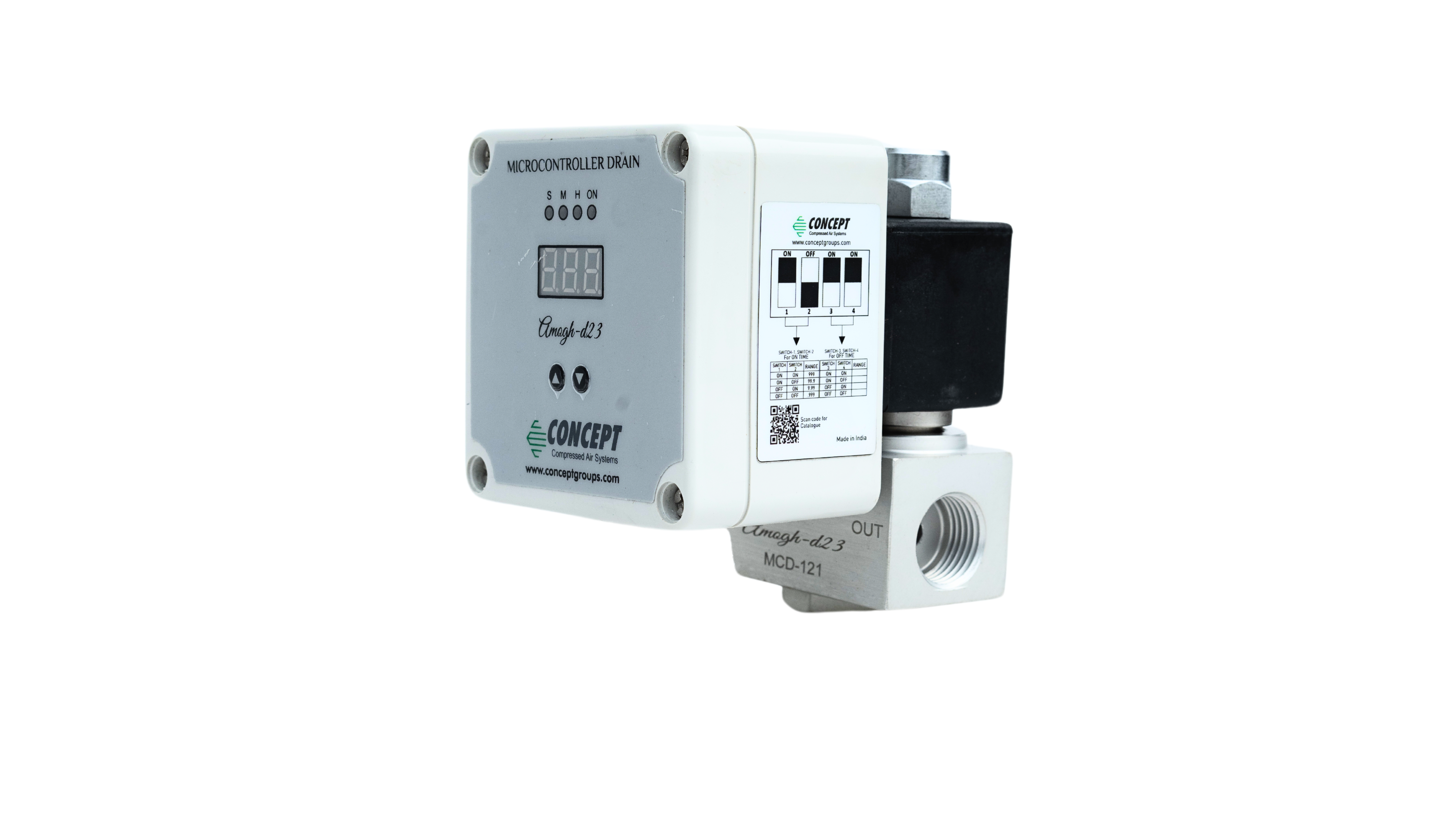

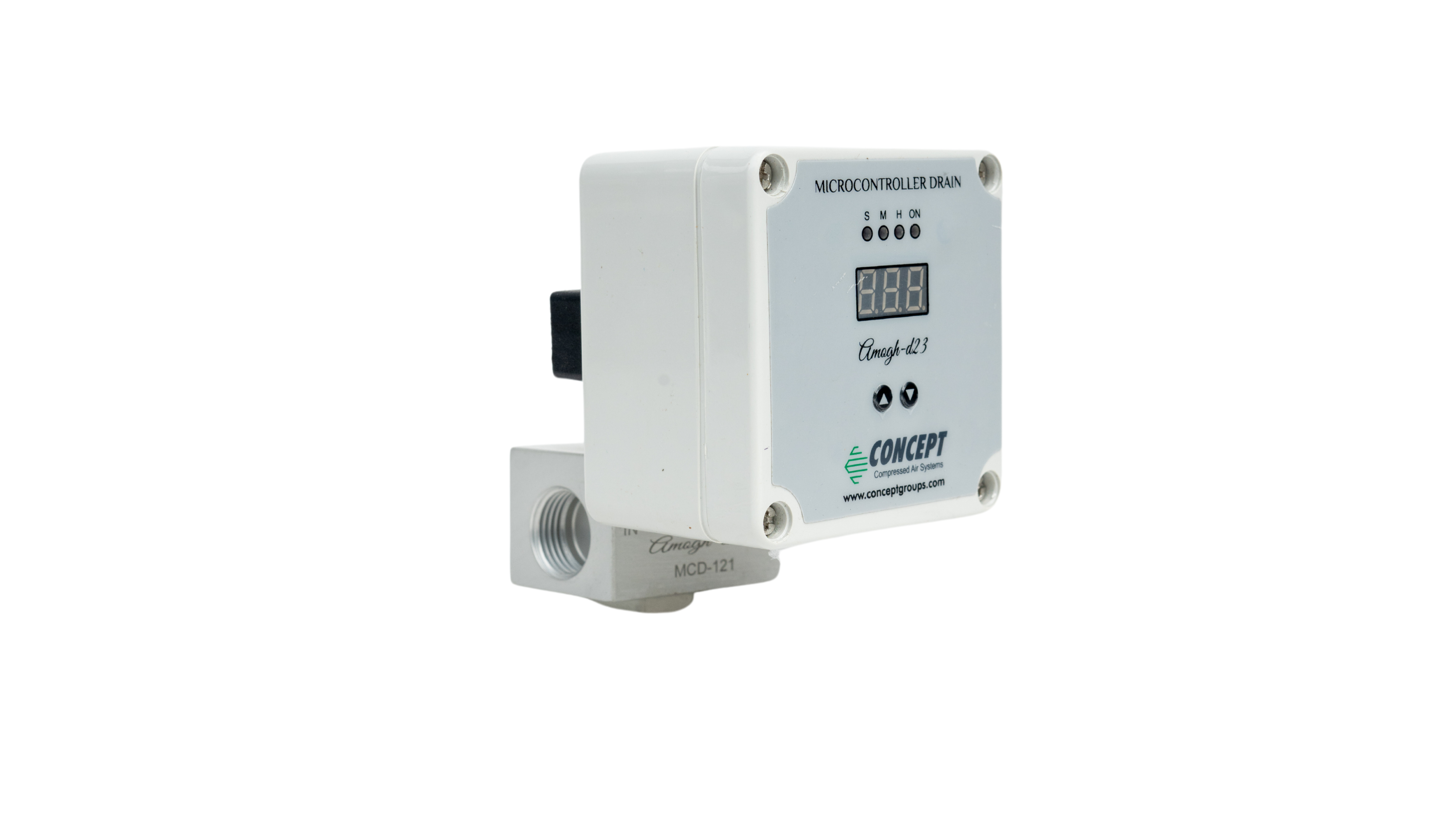

MICRO CONTROLLER AUTO DRAIN

Technical Specification

Display	: 3 Digit 7 Segment LED
Supply	: 110 V AC/230 V AC, 50Hz (Please Specify)
Range	: ON TIME (0-999 S/M/H, Factory set 1-9 Sec.)
OFF Time:		0-999 S/M/H (Factory set 99.9 Min.)

Indications (LED)

Set time in Seconds
M: Set time in Minutes
H: Set time in Hours
ON: Valve ON

Enclosure: Polycarbonate with IP65 (Weather Proof)

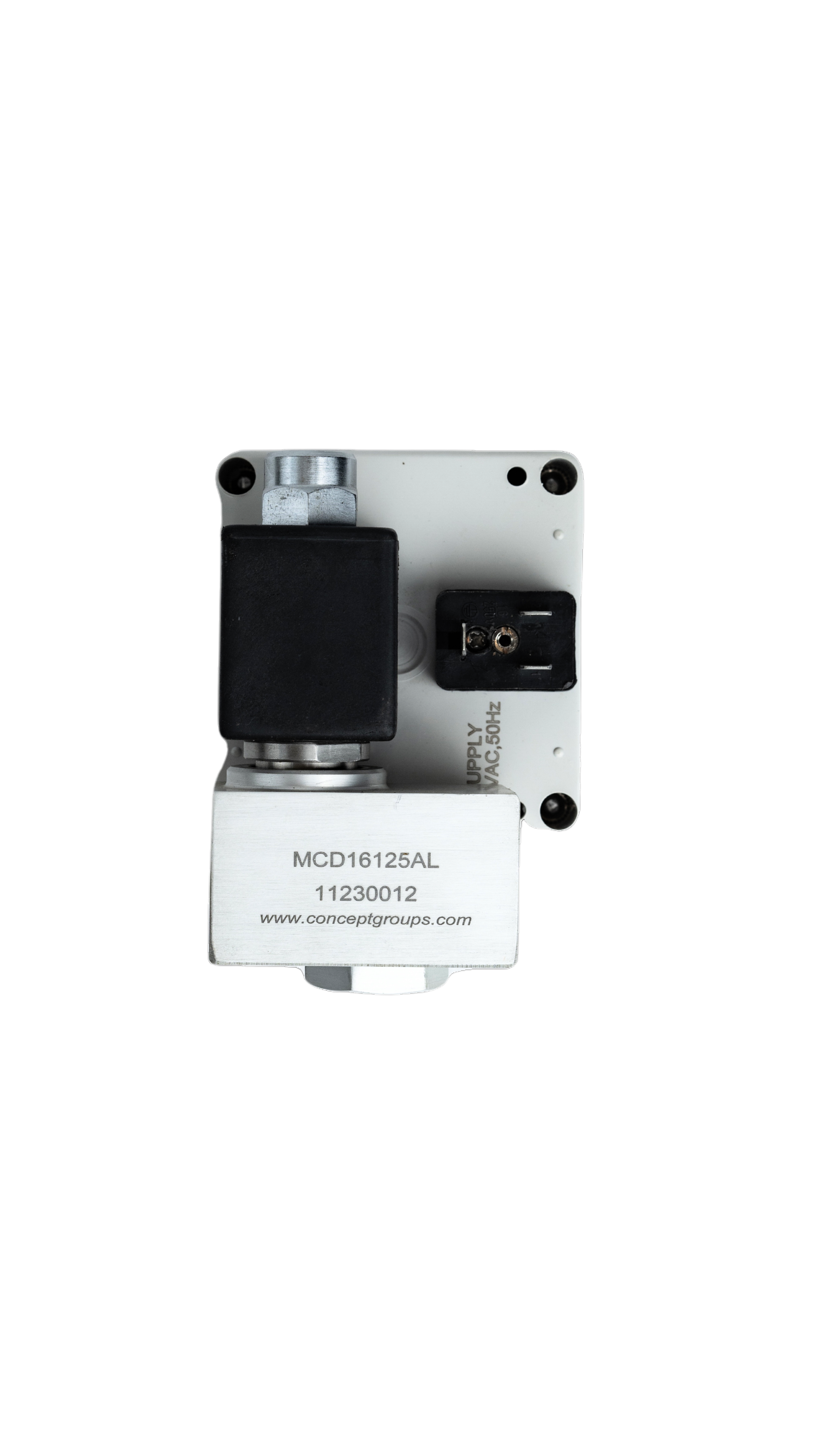

Valve: Aluminum / Brass / SS 304 / SS 316 (As per requirement)

Working Pressure: 12 Kg/cm² / 16 Kg/cm² / 40 Kg/cm² / 70 Kg/cm²

Connection: ¼", ½", ¾", 1" BSP (F) or NPT (F) (On Demand)

DIP Switch Setting

Use DIP switches to configure SWITCH 1, SWITCH 2, SWITCH 3 & SWITCH 4 for DP Selection.

ON Time

Switch-1	Switch-2	Range
ON	ON	999
ON	OFF	99.9
OFF	ON	9.99
OFF	OFF	.999

OFF Time

Switch-3	Switch-4	Range
ON	ON	999
ON	OFF	99.9
OFF	ON	9.99
OFF	OFF	.999

For example, to configure the timer to 99.9 seconds ON time and 999 minutes OFF time, set the DIP switches as per the table above.

Working Pressure & Orifice

WP	Orifice (in mm)
12	5.0 / 4.0
16	2.5
40	1.3
70	0.9

Optimize your compressed air system with the Amogh-dd-23 Microcontroller Auto Drain, a smart and durable solution for automated drainage. Equipped with a 3-digit 7-segment LED display, it offers user-friendly time settings (ON time: 0-999 S/M/H, OFF time: 0-999 S/M/H). Its IP65 polycarbonate enclosure ensures weatherproof protection, while customizable valves (Aluminum, Brass, SS 304/316) and multiple connection sizes (¼" to 1") make it adaptable to various industrial applications. Suitable for high-pressure operations (up to 70 Kg/cm²), this auto drain is the ultimate choice for efficient and reliable performance.
