AIR LINE FILTER HIGH PRESSURE

Description
Additional Information

Industrial High-Efficiency Filters - CHLFXXX

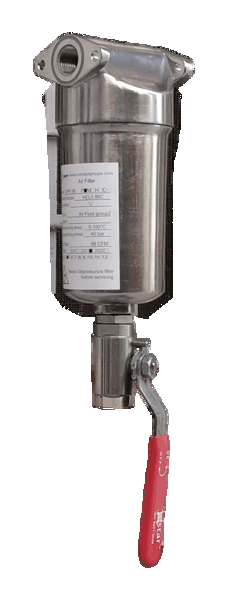

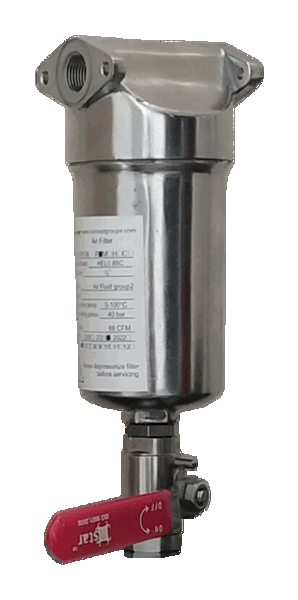

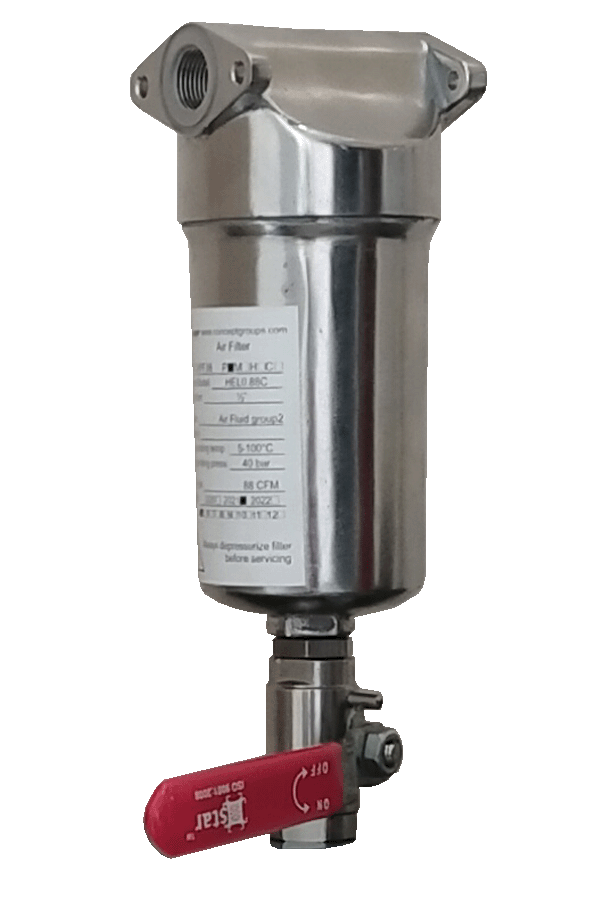

Filter Housing Features

Robust spheroidal S.S. 304 (Grade 1.4301) ensures higher mechanical strength, improved ductility, and increased shock resistance.
Head-to-bowl bore seal ensures greater seal integrity.
Threaded mounting holes on top of the filter head allow for easy panel mounting if line mounting is not an option.
Engraved flow direction arrow indicates proper flow direction, reducing the possibility of improper installation.
Laser masking part number ensures visible identification over time.
Manual drain valve (S.S. 304) with a positive O-ring seal for secure drainage.
Bowls are designed to be easily tightened or loosened with a standard socket wrench.

Filter Element Features

Concept Finite offers six filter media grades to meet a variety of application requirements.
Coalescing grades available with 95% to 99.995% efficiency, with pleated or UNI-CAST coalescing media designs. Options include bulk liquid separator, particulate removal, and oil vapor removal.
Retention clip design ensures elements are seated and sealed properly, minimizing contaminant bypass.
Internal and external S.S. 304 retainers provide structural integrity, including anti-vibration shoulders and standoffs to prevent movement during severe system pulsations.
Element standoff lengths are optimized to allow for maximum liquid contaminant collection in the quiet zone, minimizing carryover.

B. No.	Model	Connection BSP (F)	Dimension				Element Part No.
			A	B	C	D
1	CHLF-056	½"	195	90	18	340	ELCH056050X069
2	CHLF-088	½"	195	90	18	340	ELCH088050X076
3	CHLF-127	¾"	267	90	18	340	ELCH127050X112
4	CHLF-212	1"	300	125	31	445	ELCH212075X122
5	CHLF-254	1-1/2"	300	125	31	445	ELCH254075X137
6	CHLF-300	1-1/2"	380	125	31	525	ELCH300075X200
7	CHLF-441	1-1/2"	380	125	31	525	ELCH441075X228

The CHLFXXX Industrial High-Efficiency Filters are built with premium spheroidal S.S. 304 for unmatched mechanical strength and shock resistance. Designed for durability and precision, these filters include a head-to-bowl bore seal, laser-engraved flow indicators, and threaded mounting holes for easy installation. Filter elements are crafted with six versatile media grades, ensuring 95% to 99.995% efficiency for coalescing, particulate, and oil vapor removal.

Each element features internal and external S.S. 304 retainers, anti-vibration shoulders, and retention clips for secure and reliable performance, even under severe system pulsations. The optimized standoff design enhances liquid contaminant collection while preventing carryover. Whether for industrial applications or demanding environments, the CHLF model ensures efficient, reliable filtration with long-term durability.
