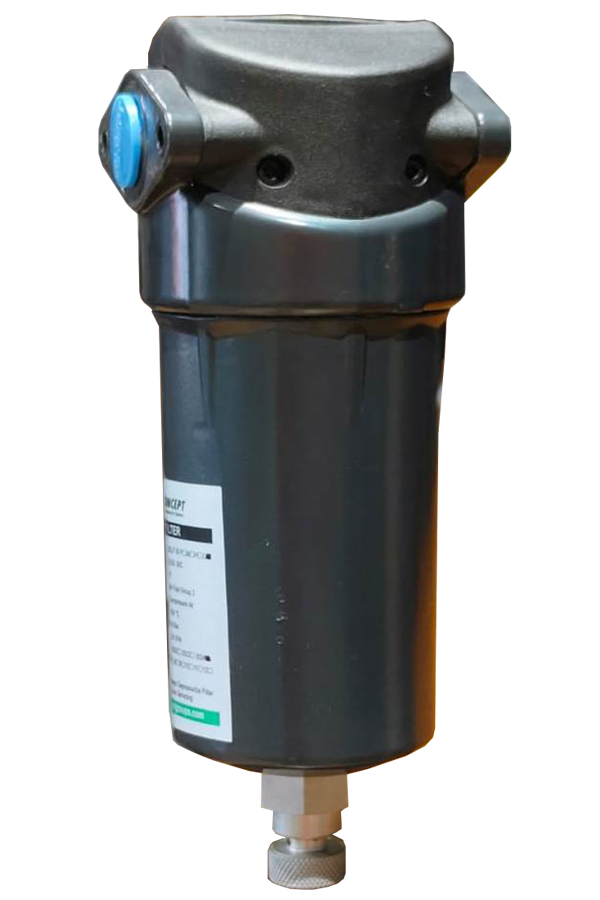

AIR LINE FILTER

Description
Additional Information

Model CELFXXX

Industrial High Efficiency Filters

Features

Low pressure drops assuring high energy savings
High capability of retention (99.999%)
Extremely purified compressed air and low operating costs
Large capacity reservoir allowing large condensate volume
Drainage layer
Seal prevents opening while the filter is under pressure
Inlet air temperature up to 100°C
Filtration grades as per ISO8573-1

Housing

Pressure die-cast aluminum housing
Chromated for corrosion protection
Powder-coated with zinc-based corrosion-inhibition primer and epoxy polyester powder
Salt spray test: exposed to 5% NaCl at 37°C for 72 hours

Sealing

NBR-70A
Optional hydrogenated nitrile ‘O’ ring with superior mechanical properties, high strength, and temperature range -40°C to 150°C

Durable Chemical Resistance

Injection-molded nylon end caps bonded to the filter core with high-strength polyurethane potting resin for maximum durability.

Installation

Compact design suitable for end-of-point usage
No threaded connector required for installation

Standard Reference Conditions

Ambient temperature: 45°C
Working pressure: 7 Kg/cm²
Inlet air temperature: 100°C

Maximum Working Conditions

Pressure: 16 Kg/cm²
Inlet air temperature: 100°C

Filtration Ratings

P: 3µ (Class 3 ISO8573-1)
F: 1µ solid / 0.1 mg/m³ oil (Class 2 ISO8573-1)
H: 0.01µ solid / 0.01 mg/m³ oil (Class 1 ISO8573-1)
C: 0.003 mg/m³ oil (Class 1 ISO8573-1)

S. NO.	Model	Flow		Connection BSP (F)	Element Model
		M³/Hr	SCFM
1.	CELF-50	86	50	½"	ELCA050050X076
2.	CELF-80	138	80	¾"	ELCA080050X112
3.	CELF-150	259	150	1"	ELCA150075X122
4.	CELF-200	346	200	1-½"	ELCA200075X137
5.	CELF-300	519	300	1-½"	ELCA300075X200
6.	CELF-400	692	400	1-½"	ELCA400075X228

The Air Line Filter CELF Model - 50 to 400 CFM offers exceptional filtration performance for industrial applications. Engineered with high-efficiency filter media, it guarantees 99.999% retention, low pressure drops, and high energy savings. Its durable housing features pressure die-cast aluminum, chromate protection, and powder coating to ensure long-lasting performance even in challenging environments.

Designed for ease of use, this filter includes a compact design for end-of-point installation without threaded connectors. It supports a wide range of filtration grades, meeting ISO8573-1 standards, and operates efficiently with inlet air temperatures up to 100°C and working pressures up to 16 Kg/cm². The CELF model is the ultimate choice for ensuring purified compressed air in industries requiring high reliability and low operating costs.
