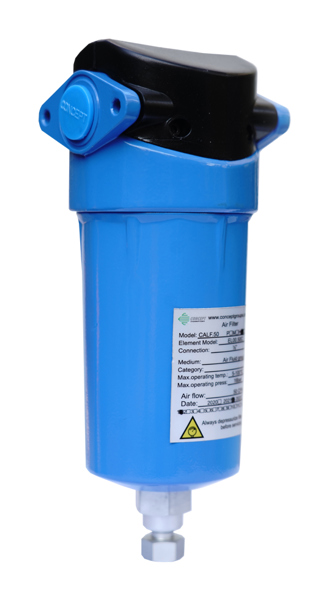

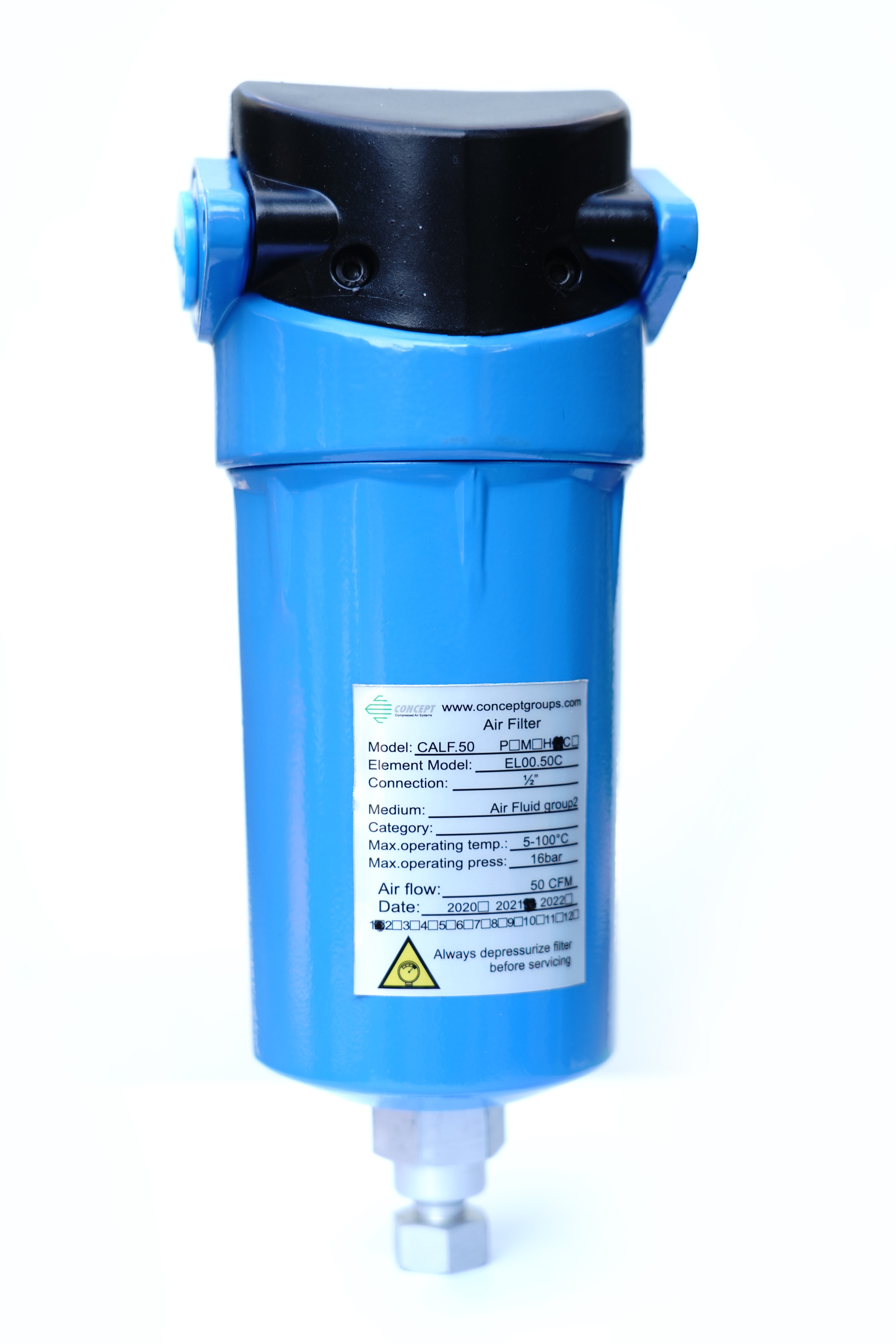

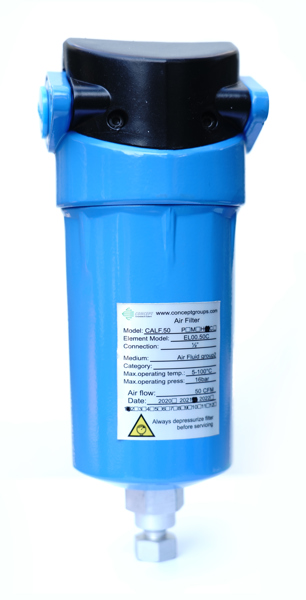

CALFXXX

INDUSTRIAL HIGH EFFICIENCY FILTERS

Features:

• Low Pressure Drops - Assuring high energy savings.
• High capability of retention (99.999%).
• Extremely purified compressed air and low operating costs.
• Large capacity reservoir for condensate volume.
• Drainage layer.
• The closure provided by the seal cannot be opened while the filter is under pressure.
• Inlet Air Temperature: 100°C (Max.).
• Filtration Grades as per ISO8573-1.

HOUSING:

• Pressure die cast aluminium housing.
• Chromated to provide protection against corrosion.
• Powder coating process with zinc-based corrosion inhibition powder primer and epoxy polyester powder.
• Salt spray test conducted exposing to salt fog (5% NACL) at 37°C for 72 hours.
• NBR-70A Hydrogenate Nitrile ‘O’ Ring - Superior mechanical properties, high strength, and temperature range from -40°C to 150°C (Optional).

Durable Chemical Resistance End Caps:

Injection moulded from nylon, then bonded to the filter core with high-strength two-part polyurethane potting resin for maximum durability.

Installation in Series:

• This compact assembly design meets most customer demands.
• Suitable for end-point usage without the need for threaded connectors.

Standard Reference Conditions:

• Ambient temperature: 45°C
• Working pressure: 7 Kg/cm²
• Inlet air temperature: 100°C

Max Working Condition:

• Pressure: 16 Kg/cm²
• Inlet air temperature: 100°C

Filtration Standards (ISO8573-1):

• P = 3µ (class 3)
• F = 1µ solid / 0.1 mg/m³ oil (class 2)
• H = 0.01µ solid / 0.01 mg/m³ oil (class 1)
• C = 0.003 mg/m³ oil (class 1)

CALFXXX Industrial High-Efficiency Filters provide unparalleled filtration efficiency with features such as low-pressure drops, 99.999% retention capacity, and robust design for long-lasting performance. The durable housing is pressure die-cast, chromated, and powder-coated to prevent corrosion. These filters conform to ISO8573-1 standards, offering multiple filtration grades from P (3µ) to C (0.003 mg/m³ oil) to meet diverse industrial needs.

The compact assembly is perfect for end-point installations and operates under extreme conditions with a maximum working pressure of 16 Kg/cm² and an inlet air temperature of 100°C. Optional upgrades like hydrogenated nitrile 'O' rings further enhance mechanical properties and operating range. Tested rigorously, these filters deliver reliability, energy efficiency, and superior compressed air quality, making them an essential addition to any industrial operation.
