AIR LINE FILTER BACTERIA

Description
Additional Information

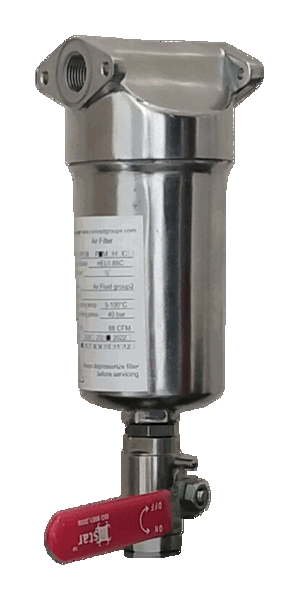

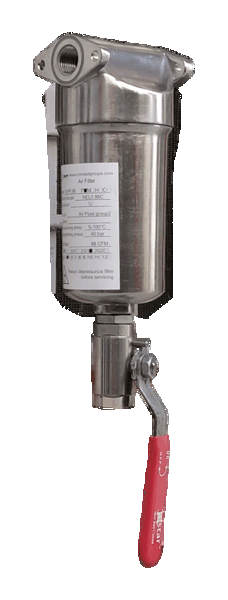

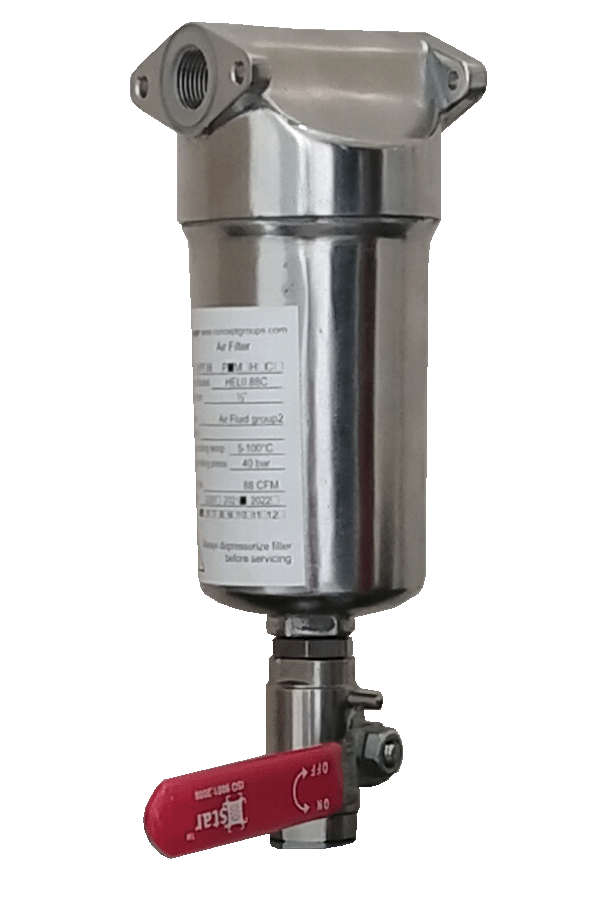

Air Line Filter Bacteria CBSF Model - 056 to 400 CFM

Specifications

Model: CBSFXXX
Type: Sintered Air Line Filter

Material of Construction

Filter Media: SS 316L Sintered Powdered
Top & Bottom Caps: SS 316
Sealing Technology: Welding
Max. Operating Pressure: 40 Bar
Max. Temperature: 200°C
Allowable Differential Pressure: 0.63 Bar per 250mm Length
Micron Ratings: 0.1, 0.2, 1.0, 5.0, 10.0, 20.0, 50.0 or as required

Features

High mechanical strength and good integrity
Good corrosion and thermal resistance
No possibility of media migration
Good permeability
Service life can be prolonged by regeneration processes

Cleaning Process

Cleaning with nitric acid, IPA, and water as per SOP process

Applications

Sintered powder filter cartridges are ideal for filtration of air or liquid in high-temperature and corrosive environments. Produced by cold isostatic pressing, they offer high porosity and stability. These filters are easily cleanable, backwashable, and capable of withstanding high differential pressure, ensuring a longer shelf life.

S. No.	Model	Connection BSP (F)	CFM	Element Code
1.	CBSF-056	½"	50	ELCB056050X076
2.	CBSF-080	¾"	80	ELCB080050X112
3.	CBSF-150	1"	150	ELCB150075X122
4.	CBSF-200	1-½"	200	ELCB200075X137
5.	CBSF-300	1-½"	300	ELCB300075X200
6.	CBSF-400	1-½"	400	ELCB400075X228

The CBSF Model Air Line Filter is an advanced sintered air line filter designed to handle bacteria and moisture filtration in compressed air systems. Engineered with SS 316L sintered powdered filter media and SS 316 top and bottom caps, it offers high mechanical strength, thermal resistance, and corrosion protection. The filter supports a wide range of micron ratings (0.1 to 50) and operates at a maximum pressure of 40 Bar and temperatures up to 200°C.

Key features include no media migration, excellent permeability, and a long service life that can be further extended through regeneration processes. Ideal for industrial environments, this filter excels in high-temperature and corrosive applications, ensuring reliable performance and easy maintenance. Suitable for various industries, the CBSF model is a trusted solution for demanding filtration needs.
